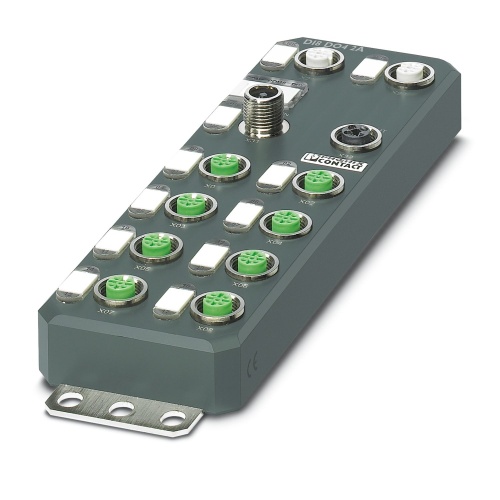

Phoenix Contact 2701495 Digital module AXL E EIP DI8 DO4 2A M12 6P
Normally In Stock
Code: 71197
AXL E EIP DI8 DO4 2A M12 6P Phoenix 2701495 I/O component Axioline Digital I/O,Digital Input,Digital Output EtherNet/IP 10/100 Mbps M12 fast connection technology,M12 connector (T-coded),M12 connector, double occupancy,M12 connector, (A-coded) PLC & IO
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
$618.06
Sale Price
$515.05
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

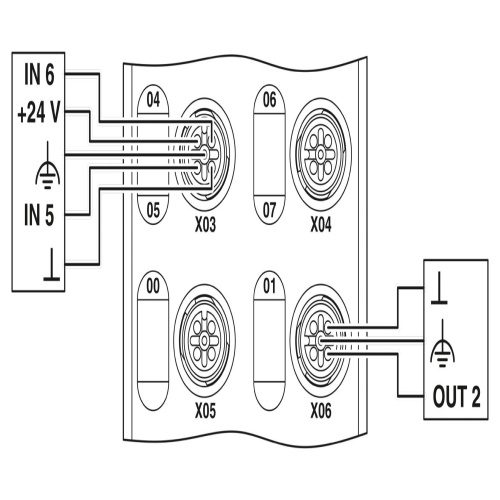

Phoenix Contact 2701495 The Axioline E is a digital I/O device with EtherNet/IP connectivity and features a M12 connector. It has 8 digital inputs that operate on 24V DC power and are connected via a 4-conductor connection technology, while the 4 digital outputs have 3-conductor connections and also run on 24V DC power. The device is housed in plastic and is designed to provide protection against dust and water with an IP65/IP67 rating.
Specifications
PLC & IO Number of Digital Inputs
8
PLC & IO Connection Method
M12 fast connection technology
PLC & IO Connection Method
M12 connector (T-coded)
PLC & IO Connection Method
M12 connector
PLC & IO Connection Method
double occupancy
PLC & IO Connection Method
A-coded
PLC & IO Transmission Speed
10-100 Mbps
PLC & IO Network Interface
EtherNet-IP
PLC & IO Degree of Protection
IP65-IP67
PLC & IO Type
Axioline
PLC & IO Number of Digital Outputs
4
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Diagnostic and status indicators
Transmission speed of 10 Mbps and 100 Mbps
Connection of digital sensors and actuators using M12connectors (A-coded)
Connection to EtherNet/IP™ network using M12 connectors (D-coded)
Short-circuit and overload protection of the sensor supply
IP65/IP67 degree of protection
