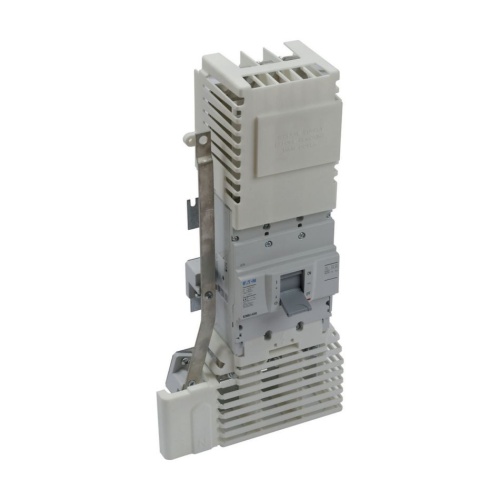

Eaton EBMBT2503 - Memshield 3 MCB Distribution Board LV systems Final Distribution Boards. MEM B, direct incomer connection kit (lugs) 250A TP
Normally In Stock
Code: 712783
Eaton EBMBT2503 - Memshield 3 MCB Distribution Board LV systems Final Distribution Boards. MEM B, direct incomer connection kit (lugs) 250A TP
Condition: New
Usually ships Same Day or Next Day$551.62
Sale Price
$459.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton EBMBT2503 - Memshield 3 MCB Distribution Board LV systems Final Distribution Boards. MEM B, direct incomer connection kit (lugs) 250A TP
Specifications
Manufacturer
Eaton
Component
Distribution Board
Features
Unique ‘full form’ blanking modules for unused MCB ways, provides secure shrouding of unused busbar stabs for increased electrical safety
Blanking modules have interlinking form for improved positional security
Main busbar is removable for flexible installation/Removable busbar assembly to assist installation
Associated devices are high performance MCBs, developed for commercial and industrial applications, dual rated at 10 kA IEC – 60898 & 15 kA IEC 60947-2 in B, C or D curve
Enclosure body type: Steel - welded case end with cable gland plate
IP Rating
Type A: IP3X (when correctly installed on the wall)
Type B: IP4X (when correctly installed on the wall)
Conditional short circuit rating:
Type A: 15 kA to BS EN 61439
Type B: 25 kA to BS EN 61439
Busbar short time withstand (lcw)
Type A: 5 kA 0.1 s
Type B: 10 kA 0.5 s / 17 kA 0.25 s
