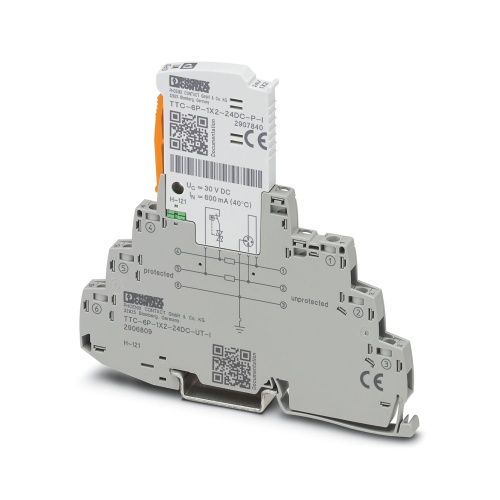

Phoenix Contact 2906809 Surge protection device TTC-6P-1X2-24DC-UT-I
Normally In Stock
Code: 71683
TTC-6P-1X2-24DC-UT-I Phoenix 2906809 Surge protection for measurement and control technology 24 VDC Screw connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$211.13
Sale Price
$175.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

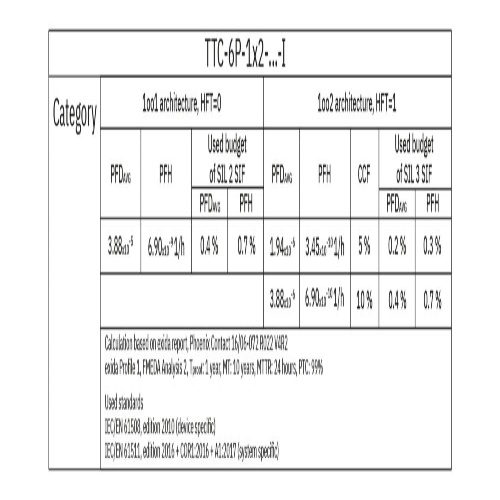

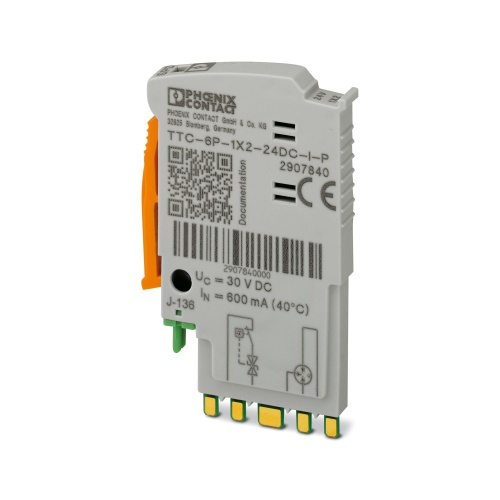

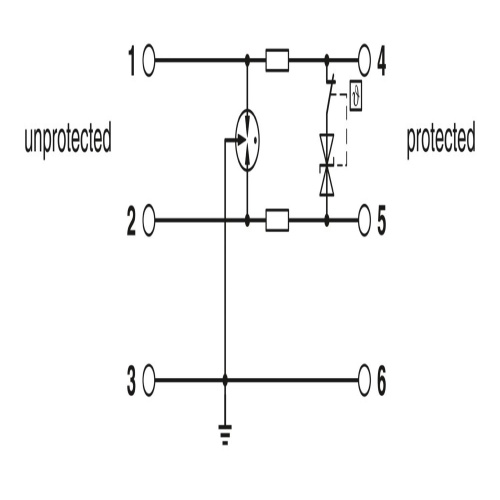

Phoenix Contact 2906809 A surge protection system, typically consisting of a protective plug and base element with an integrated status indicator, is designed for use in 2-wire floating signal circuits with current loops ranging from 0-4mA to 20mA, and is compatible with HART protocols, making it suitable for applications that require SIL level 3 safety.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
C3
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Nominal Discharge Current
90 Amp
Connection Method
Screw connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge protection for measurement and control technology
Maximum Continous Voltage
53 Volt
Component
Surge Protection Device
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features

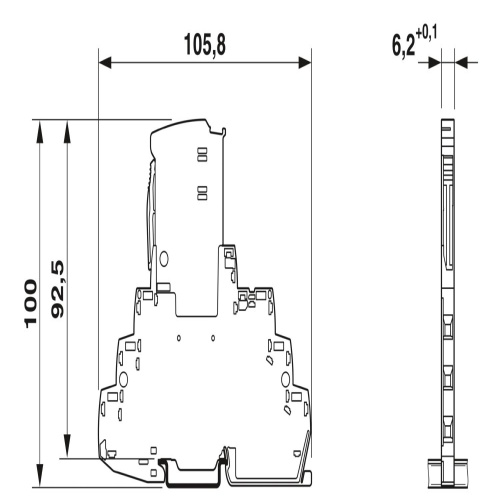

Space-saving and cost-saving with a narrow overall width of just 6 mm
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2906809 Application Note English.pdfPhoenix 2906809 CAD data International.dxfPhoenix 2906809 CAD data International.pdfPhoenix 2906809 CAD data International.stpPhoenix 2906809 Certification International-2.pdfPhoenix 2906809 Certification International.pdfPhoenix 2906809 Flyer English-2.pdfPhoenix 2906809 Flyer English.pdfPhoenix 2906809 Manufacturers declaration English.pdfPhoenix 2906809 Manufacturers declaration International.pdfPhoenix 2906809 Surge Protection English.pdfPhoenix 2906809 Tender Text English.zip
