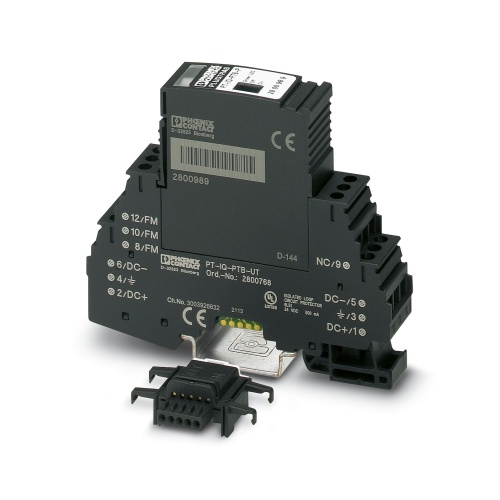

Phoenix Contact 2800768 Supply and remote module PT-IQ-PTB-UT
Normally In Stock
Code: 71714
PT-IQ-PTB-UT Phoenix 2800768 Surge protection for measurement and control technology Screw connection,DIN rail NS35 Supply and remote module Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$313.25
Sale Price
$261.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

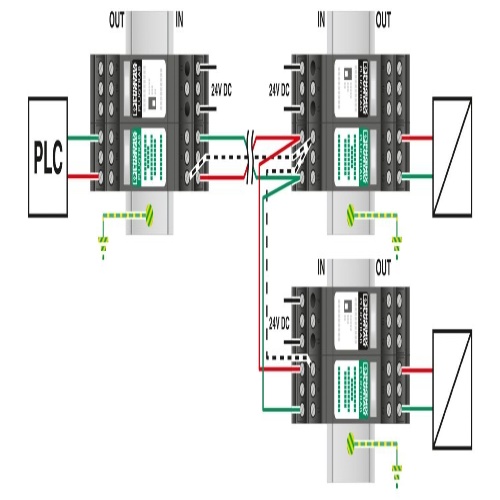

Phoenix Contact 2800768 This module provides a power supply solution while also enabling multi-stage, floating remote signaling to individual surge protection modules that are connected to it.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Fault Warning
remote indicator contact
Arrester Class according to IEC
PV II
Arrester Class according to IEC
PV T2
Manufacturer
Phoenix Contact
Component
Accessories
Connection Method
Screw connection
Surge Protector Type
PV arrester
Nominal Discharge Current
15 kA
Sub Component
remote module
Features

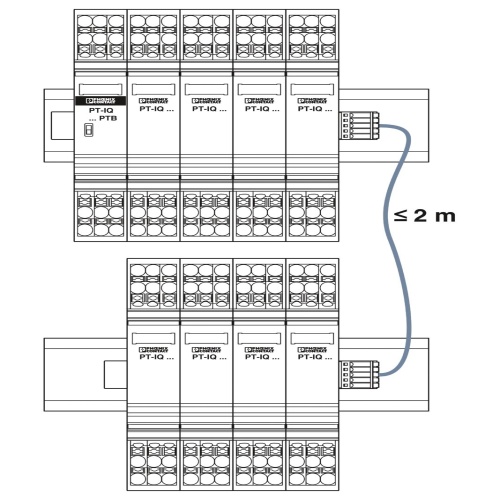

Supply of up to 28 protective devices due to high feed-in power
Integration of the status message into the system controller via group remote signaling
Install quickly and error-free with DIN rail connectors
Predictive monitoring with 3-stage LED display
Maximum ease of maintenance, thanks to the 2-piece design
Downloads
Phoenix 2800768 CAD data International.dxfPhoenix 2800768 CAD data International.pdfPhoenix 2800768 CAD data International.stpPhoenix 2800768 Certification English.pdfPhoenix 2800768 Certification International.pdfPhoenix 2800768 Flyer English.pdfPhoenix 2800768 Flyer English-2.pdfPhoenix 2800768 Manufacturers declaration English.pdfPhoenix 2800768 Manufacturers declaration International.pdfPhoenix 2800768 Package Slip International.pdfPhoenix 2800768 Product Information English.pdfPhoenix 2800768 Software International.zipPhoenix 2800768 Surge Protection English.pdfPhoenix 2800768 Tender Text English.zip
