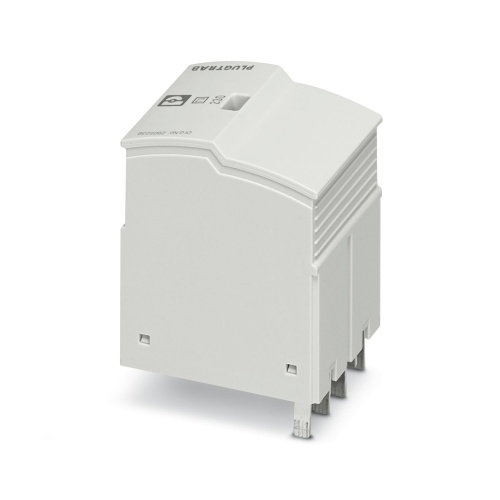

Phoenix Contact 2905236 Type 3 surge protection plug PLT-SEC-T3-3S-230-P
Normally In Stock
Code: 71935
PLT-SEC-T3-3S-230-P Phoenix 2905236 Replacement plug 230/400 VAC pluggable Type 3 surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$378.14
Sale Price
$315.12
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2905236 A replacement plug suitable for Type 3 device protection is available in the PLUGTRAB SEC T3 3S product range, designed to operate at a nominal voltage of 230 volts.
Specifications
Arrester Class according to IEC
I
Arrester Class according to IEC
T1
Fault Warning
Optical
Max Discharge Capacity
50 kA
Arrester Class according to IEC
I - II
Arrester Class according to IEC
T1 - T2
Impulse Discharge Current
25 kA
Manufacturer
Phoenix Contact
Connection Method
Screw connection
Surge Protector Type
Replacement plug
Maximum Continous Voltage
350 Volt
Nominal Discharge Current
25 kA
Surge Protector Line Voltage
230-400 Volt
Component
Surge Protection Plug
Features
Your preferred connection technology can be selected as both screw connection and Push-in connection are available
Easy to maintain due to consistently pluggable protection modules
Excellent level of information provided by mechanical/visual status indicator and remote indication contact
Surge protection family for universal use with optimum energy coordination from the lightning current arrester to the device protection
Optimal additional protection of the industrial power supply for a longer service life and increased availability of the system
Downloads
Phoenix 2905236 CAD data International.dxfPhoenix 2905236 CAD data International.pdfPhoenix 2905236 CAD data International.stpPhoenix 2905236 Flyer English.pdfPhoenix 2905236 Flyer English-2.pdfPhoenix 2905236 Manufacturers declaration International.pdfPhoenix 2905236 Package Slip International.pdfPhoenix 2905236 Surge Protection English.pdfPhoenix 2905236 Tender Text English.zip
