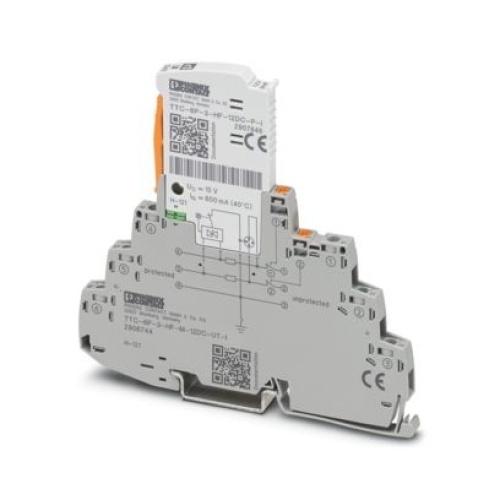

Phoenix Contact 2906744 Surge protection device TTC-6P-3-HF-M-12DC-UT-I
Normally In Stock
Code: 72089
TTC-6P-3-HF-M-12DC-UT-I Phoenix 2906744 Surge protection for information technology 12 VDC Screw connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$248.35
Sale Price
$206.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2906744 A surge protection system consists of a protective plug and base element that include an integrated status indicator and a disconnection mechanism for three signal wires with a common reference potential, ideal for use in HF applications and telecommunications interfaces where no supply voltage is present and meets zone 2 safety standards. This type of surge protection can also be used in safety-related circuits up to SIL 3 level of reliability.
Specifications
Fault Warning
Optical
Fault Warning
remote indicator contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw connection
Surge Protector Line Voltage
12 Volt
Surge Protector Type
Surge arrester
Maximum Continous Voltage
150 Volt
Max Discharge Capacity
40 A
Nominal Discharge Current
20 kA
Component
Surge Protection Device
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features

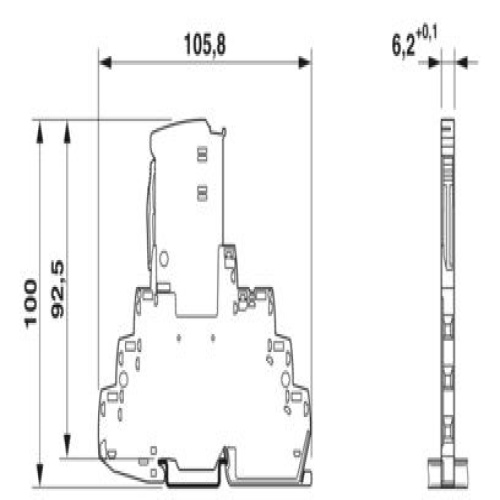

Space-saving and cost-saving with a narrow overall width of just 6 mm
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2906744 Application Note English.pdfPhoenix 2906744 CAD data International.dxfPhoenix 2906744 CAD data International.pdfPhoenix 2906744 CAD data International.stpPhoenix 2906744 Certification International.pdfPhoenix 2906744 Certification International-2.pdfPhoenix 2906744 Flyer English.pdfPhoenix 2906744 Flyer English-2.pdfPhoenix 2906744 Manufacturers declaration English.pdfPhoenix 2906744 Manufacturers declaration International.pdfPhoenix 2906744 Surge Protection English.pdfPhoenix 2906744 Tender Text English.zip
