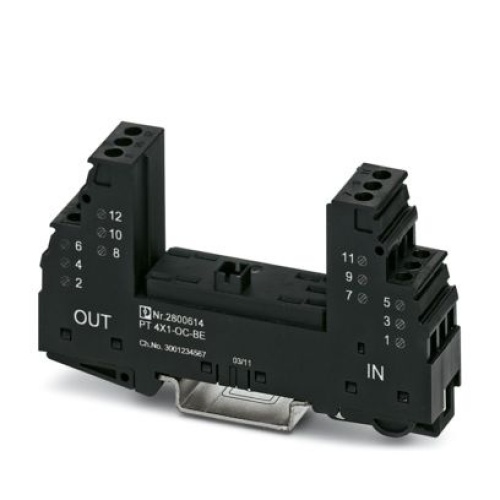

Phoenix Contact 2800614 Surge protection base-element PT 4X1-OC-BE
Normally In Stock
Code: 72112
PT 4X1-OC-BE Phoenix 2800614 Base element Screw connection,Screw terminal blocks Surge protection base element Surge Protection
Condition: New
Usually ships Same Day or Next Day$153.50
Sale Price
$127.92
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2800614 The base element for a PT protective plug with protective circuit is designed for four-conductor signal circuits that are grounded on one side, specifically excluding connections between conductors 3-4 (GND) and 9-10, and can be mounted on the NS 35/7.5 and NS 35/15 configurations without any coding or additional housing width of 17.5 mm.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Fault Warning
remote indicator contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Component
Accessories
Connection Method
Screw connection
Surge Protector Type
Surge arrester
Maximum Continous Voltage
335 Volt
Nominal Discharge Current
20 kA
Sub Component
Base element
Features
Easy selection for all possible demands in MCR applications with a complete product portfolio
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Maximum ease of maintenance, thanks to the 2-piece design
Downloads
Phoenix 2800614 CAD data International.dxfPhoenix 2800614 CAD data International.pdfPhoenix 2800614 CAD data International.stpPhoenix 2800614 Flyer English.pdfPhoenix 2800614 Manufacturers declaration English.pdfPhoenix 2800614 Manufacturers declaration International.pdfPhoenix 2800614 Package Slip International.pdfPhoenix 2800614 Software International.zipPhoenix 2800614 Surge Protection English.pdfPhoenix 2800614 Tender Text English.zip
