Phoenix Contact 1935721 PCB terminal block FFKDSA1/H-2,54-22
Normally In Stock
Code: 723439
Phoenix Contact FFKDSA1/H-2,54-22 - PCB terminal block, 22 Positions, 2.54 mm, 160 VAC, 6 Amp, Cu alloy - 1935721
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$29.48
Sale Price
$24.57
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

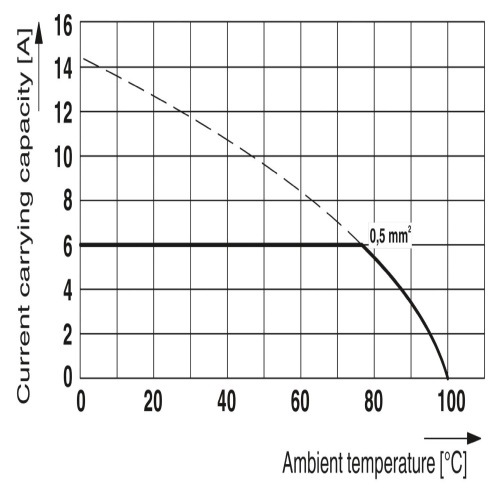

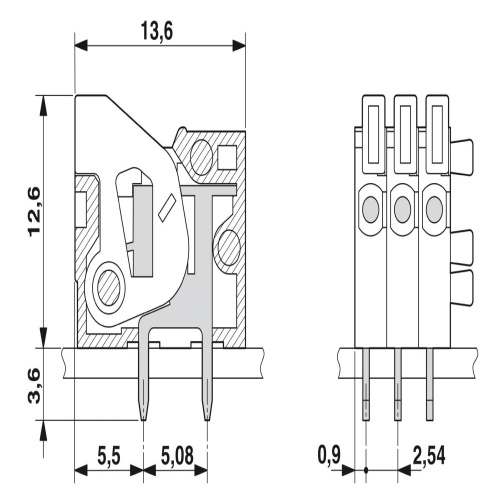

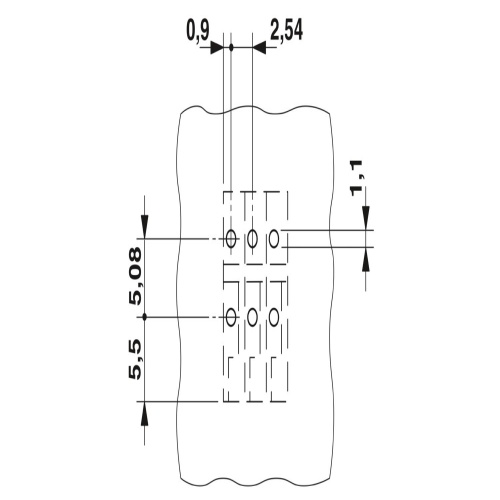

Phoenix Contact 1935721 The printed circuit board terminal has specifications including a nominal current of 6 A and a rated voltage of 160 V, with a cross section area of 0.5 mm2. The terminal features 22 potentials connected through wave soldering to a PCB with a linear pinning layout, utilizing push-in spring connections. Each potential is mounted with 2 solder pins, arranged in a pitch of 2.54 mm and colored green, while the overall product range spans FFKDS(A) 0,5/..-H packaging in cardboard.
Specifications
Connector Amperage
6 Amp
Connector Color
Green
Connector Material
Cu alloy
Manufacturer
Phoenix Contact
Sub Component
PCB Terminal Block
Component
PCB
Number of Connections
22
Number of Positions
22
Connector Pitch
2.54 mm
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
Operation and conductor connection from one direction enable integration into front of device
Two solder pins reduce the mechanical strain on the soldering spots
The latching on the side enables various numbers of positions to be combined
