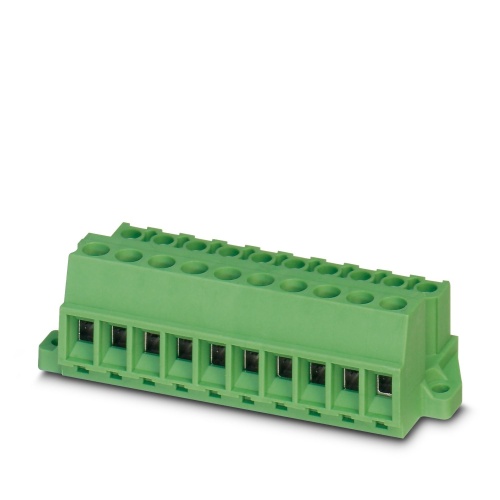

Phoenix Contact 1824340 Standard Plug In Block
Normally In Stock
Code: 723450
Standard plug-in block with green color, 12A current rating, 320V III/2 voltage, Sn contact surface, and 24 potential connections
Condition: New
Usually ships Same Day or Next Day$74.06
Sale Price
$61.72
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The Phoenix Contact 1824340 is a standard plug-in block handling 12A nominal current, featuring Sn contact surface and socket connection type. It has 24 potential connections, suitable for the COMBICON MSTB 2,5 system, ideal for industrial applications requiring reliable connectivity with multiple connections available
Specifications
Connector Amperage
12 Amp
Connector Color
Green
Connector Material
Cu alloy
Component
Direct plug-in block
Manufacturer
Phoenix Contact
Number of Connections
24
Number of Positions
24
Connector Pitch
5.08 mm
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
