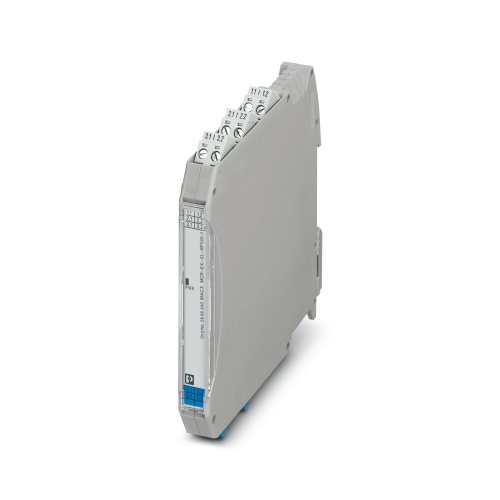

Phoenix Contact 2865340 Power/input signal conditioner MACX MCR-EX-SL-RPSSI-I
Normally In Stock
Code: 72385
MACX MCR-EX-SL-RPSSI-I MACX MCR-EX-SL-RPSSI-I Phoenix Contact 2865340 Repeater power supply operation Power/input isolating amplifier
Condition: New
Usually ships within 7-14 days. Call for ship time.$445.90
Sale Price
$371.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

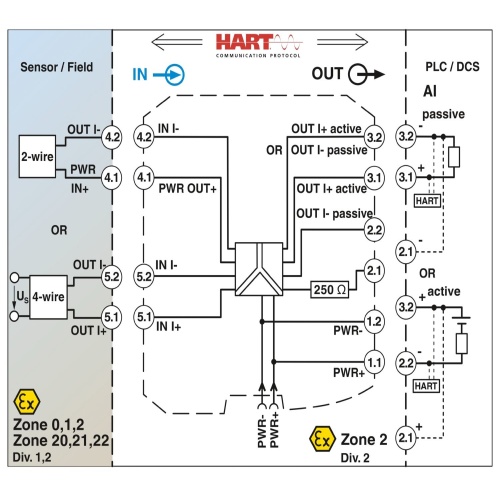

Phoenix Contact 2865340 An repeater power supply and input signal conditioner that meets HART standards transmits supplied or active 0/4 … 20 mA signals from an explosive (Ex) area to a load either in the safe or hazardous area, featuring three-way electrical isolation and SIL 2 compliance as per IEC 61508 with screw connections.
Specifications
Conditioner Connection Type
Screw Connection
Manufacturer
Phoenix Contact
Conditioner Supply Voltage
24 VDC
Conditioner Output Signal Range
0 mA - 20 mA
Conditioner Output Signal Range
4 mA - 20 mA
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Number of Channels
1
Component
Repeater
Features

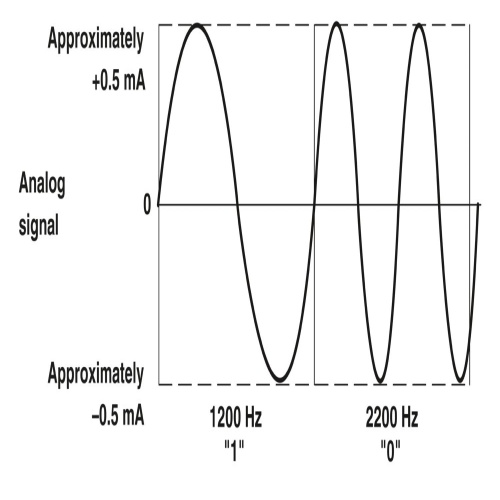

Bidirectional HART signal transmission
Measuring transducer supply voltage > 16 V
0/4 mA ... 20 mA output, active up to 1000 Ω load or passive
0/4 mA ... 20 mA input, intrinsically safe, [Ex ia], powered and not powered
Error indication according to NAMUR NE 43
SIL 2 according to IEC/EN 61508
Installation in zone 2, protection type "ec" (EN 60079-7) permitted
3-way electrical isolation
Power supply possible via DIN rail connector
Plug-in connection terminal blocks, screw connection technology, with integrated sockets for HART communicators
Housing width: 12.5 mm
Minimal power dissipation
High transmission accuracy
Downloads
Phoenix 2865340 Application Note English.pdfPhoenix 2865340 CAD data International.dxfPhoenix 2865340 CAD data International.pdfPhoenix 2865340 CAD data International.stpPhoenix 2865340 Certification English.pdfPhoenix 2865340 Certification International.pdfPhoenix 2865340 Data Sheet English.pdfPhoenix 2865340 Manual English.pdfPhoenix 2865340 Manufacturers declaration English.pdfPhoenix 2865340 Manufacturers declaration International-2.pdfPhoenix 2865340 Manufacturers declaration International.pdfPhoenix 2865340 Package Slip International.pdfPhoenix 2865340 Tender Text English.zip
