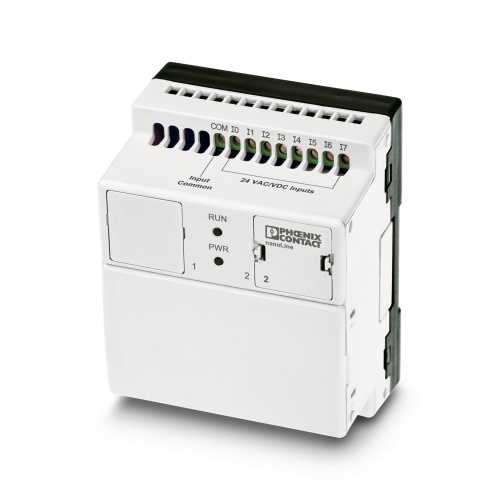

Phoenix Contact 2701056 Base unit NLC-050-024X-08I-04QRX-05A
Normally In Stock
Code: 723956
Phoenix Contact NLC-050-024X-08I-04QRX-05A - Base unit, DIN Rail Mount - 2701056
Condition: New
Usually ships Same Day or Next Day$192.62
Sale Price
$160.52
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

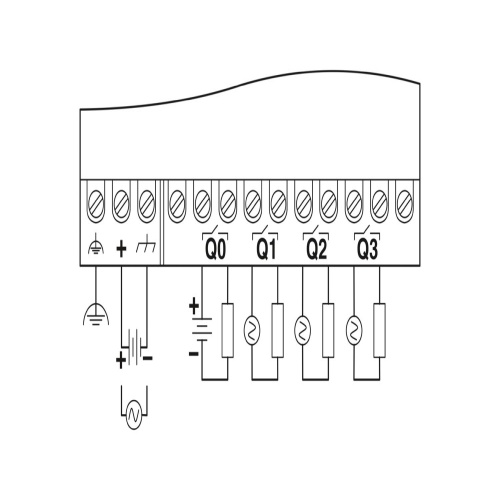

Phoenix Contact 2701056 The 24V AC/DC Nanoline base unit features eight digital input and four relay output channels, with the option to expand its capabilities using up to three additional I/O extension modules. It also offers optional communication modules for network or serial connectivity, as well as an Operator Panel providing a user interface, allowing programming via the nanoNavigator system.
Specifications
Component
Base unit
Manufacturer
Phoenix Contact
PLC & IO Mounting Type
DIN Rail
Features
An operating panel can be optionally integrated in the basic unit or installed on a wall in a decentralized manner
Intuitive programming language with options for flowcharts and ladder diagrams
Basic unit has integrated digital inputs, relay outputs, and analog inputs, including high-speed counters
Downloads
000637818_02_ULListCA_E238705.pdf083208513_00_MDoC_Exempt-CCC.pdfbase unit installation instructions.dxfccc-exempt declaration.pdfchina rohs declaration-spreadsheet.pdfChina RoHS Declaration_2701056_04_en.pdfChina RoHS Declaration_2701056_04_zh.pdfcoc document.pdfdxf file nanoline base.dxfdxf file nanoline base.stpdxf file.dxfnanolc user manual.dxfPhoenix Data Sheet.pdfSpecification Sheet.pdfstep file.dxfstep file.stpupdating nanolc and nanonavigator.pdf
