Phoenix Contact 2924016 Power/input signal conditioner MACX MCR-EX-SL-RPSSI-I-SP
Normally In Stock
Code: 72398
MACX MCR-EX-SL-RPSSI-I-SP MACX MCR-EX-SL-RPSSI-I-SP Phoenix Contact 2924016 Repeater power supply operation Power/input isolating amplifier
Condition: New
Usually ships Same Day or Next Day$445.90
Sale Price
$371.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

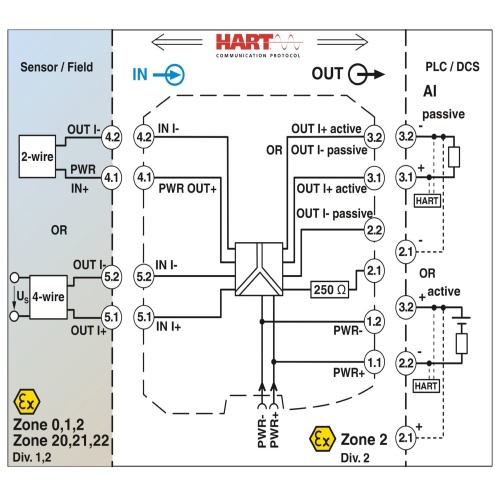

Phoenix Contact 2924016 An Ex repeater power supply and input signal conditioner is designed to transmit supplied or active current signals between hazardous areas and safe areas while maintaining three-way electrical isolation, meeting the SIL 2 standards of IEC 61508. It provides a safe connection point for both passive and active loads through push-in connections.
Specifications
Manufacturer
Phoenix Contact
Conditioner Supply Voltage
24 VDC
Conditioner Output Signal Range
0 mA - 20 mA
Conditioner Output Signal Range
4 mA - 20 mA
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Number of Channels
1
Conditioner Connection Type
Push-in connection
Component
Repeater
Features

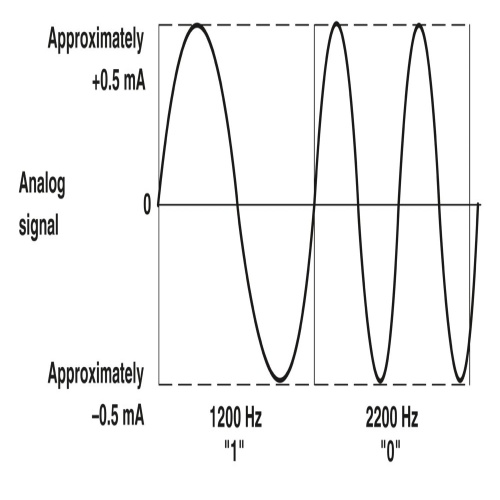

Bidirectional HART signal transmission
Measuring transducer supply voltage > 16 V
0/4 mA ... 20 mA output, active up to 1000 Ω load or passive
0/4 mA ... 20 mA input, intrinsically safe, [Ex ia], powered and not powered
Error indication according to NAMUR NE 43
SIL 2 according to IEC/EN 61508
Installation in Ex zone 2 permitted
3-way electrical isolation
Power supply possible via DIN rail connector
Plug-in connection terminals, push-in connection technology

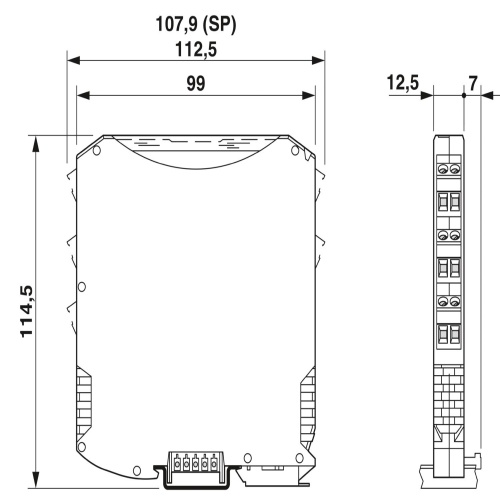

Housing width: 12.5 mm
Minimal power dissipation
High transmission accuracy
Downloads
Phoenix 2924016 Application Note English.pdfPhoenix 2924016 CAD data International.dxfPhoenix 2924016 CAD data International.pdfPhoenix 2924016 CAD data International.stpPhoenix 2924016 Certification English.pdfPhoenix 2924016 Certification International.pdfPhoenix 2924016 Data Sheet English.pdfPhoenix 2924016 Manual English.pdfPhoenix 2924016 Manufacturers declaration English.pdfPhoenix 2924016 Manufacturers declaration International-2.pdfPhoenix 2924016 Manufacturers declaration International.pdfPhoenix 2924016 Package Slip International.pdfPhoenix 2924016 Tender Text English.zip
