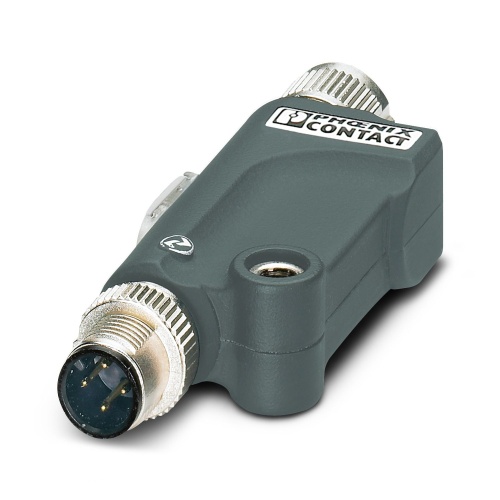

Phoenix Contact 2700350 Analog module AXL E IOL AO1 U M12 S
Normally In Stock
Code: 72625
AXL E IOL AO1 U M12 S Phoenix 2700350 Axioline,IO-Link Distributed I/O device Axioline Distributed I/O device
Condition: New
Usually ships Same Day or Next Day$177.92
Sale Price
$148.27
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2700350 The Axioline IO-Link/analog converter is a device used to connect an analog actuator with input voltage ranging from 0V to 10V and features M12 connectors in a straight version.
Specifications
PLC & IO Network Interface
I/O
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
Remote I/O
Features
IO-Link specification V1.1.1
1 IO-Link interface
IO-Link A port
Connection to an IO-Link master with M12 connector (A-coded, 4-pos.)

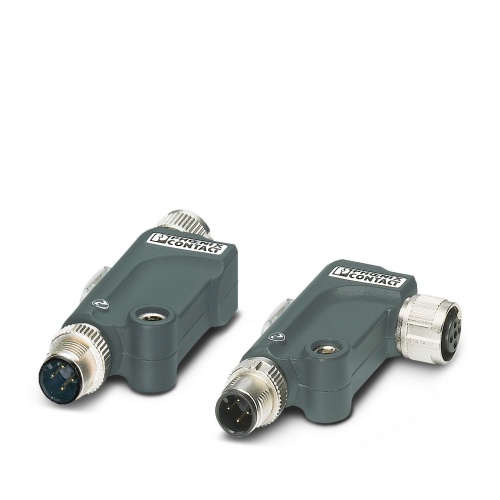

Straight version
1 analog output

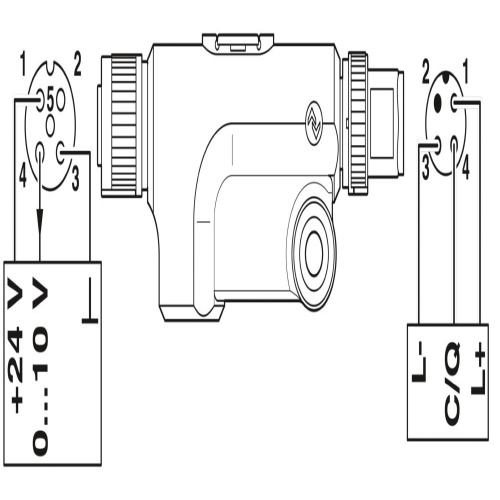

Connection of the actuator in 3-conductor technology via M12 connector (A-coded, 5-pos.)
Voltage range: 0 V ... 10 V
Functional ground connection for local connection to functional ground
Supply of the module electronics and the actuator via the IO-Link interface of the IO-Link master
Local status indicator
IP65/IP67 degree of protection
Downloads
Phoenix 2700350 CAD data International.dxfPhoenix 2700350 CAD data International.pdfPhoenix 2700350 CAD data International.stpPhoenix 2700350 Data Sheet English.pdfPhoenix 2700350 Device Description English.zipPhoenix 2700350 Manual English.pdfPhoenix 2700350 Manufacturers declaration International.pdfPhoenix 2700350 Package Slip International.pdfPhoenix 2700350 Tender Text English.zipPhoenix 2700350 Various English.pdfproduct drawing.dxfsimplified 3d model of the item.stp
