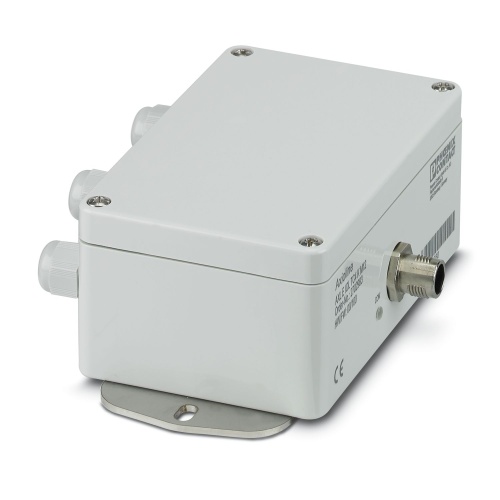

Phoenix Contact 2702983 Analog module AXL E IOL TC4/K M12
Normally In Stock
Code: 72628
AXL E IOL TC4/K M12 Phoenix 2702983 Axioline,IO-Link Polycarbonate Distributed I/O device Axioline Distributed I/O device
Condition: New
Usually ships Same Day or Next Day$434.77
Sale Price
$362.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2702983 The Axioline IO-Line is an analog converter that supports 4 type K/J thermocouple inputs with a 2-conductor connection system, has one IO-Link A port, operates on 24V DC power, and features IP65 degree of protection against dust and water.
Specifications
PLC & IO Network Interface
I/O
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
Remote I/O
Features
Status indicators
IO-Link A port
IO-Link specification V1.1.2
Connection to an IO-Link master with M12 connector (A-coded, 4-pos.)

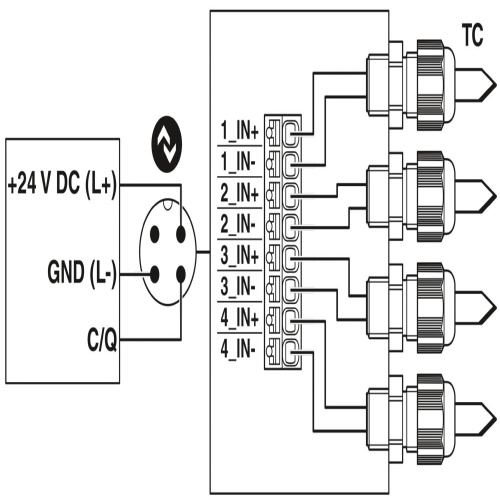

4 differential inputs for thermocouples
Measuring range type K: -270°C ... +1,372°C
Measuring range type J: -210 °C ... +1200 °C
Selectable resolution 0.1 K/0.01 K
Connection of sensors in 2-conductor technology
M12 cable gland, Push-in Technology
Diagnostic information in the process data word
Supply of the module electronics via the IO-Link interface of the master
Degree of protection IP65
