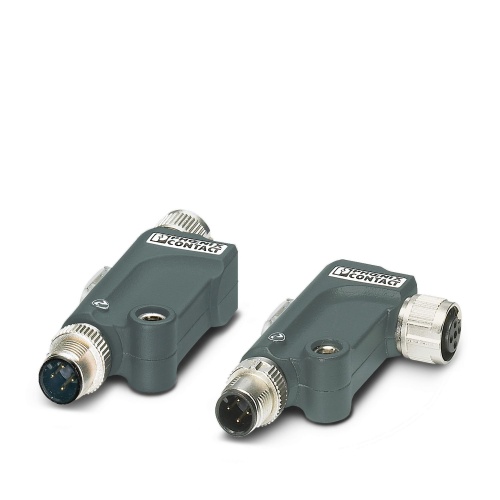

Phoenix Contact 2700278 Analog module AXL E IOL AO1 U M12 R
Normally In Stock
Code: 72650
AXL E IOL AO1 U M12 R Phoenix 2700278 Axioline,IO-Link Distributed I/O device Axioline Distributed I/O device
Condition: New
Usually ships Same Day or Next Day$177.92
Sale Price
$148.27
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2700278 An Axioline IO-Link/analog converter is a device that enables the connection of an analog actuator to a system using a versatile interface, accommodating voltage ranges from 0V to 10V and featuring M12 connectors with an angular design.
Specifications
PLC & IO Network Interface
I/O
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
Remote I/O
Features
IO-Link specification V1.1.1
1 IO-Link interface
IO-Link A port

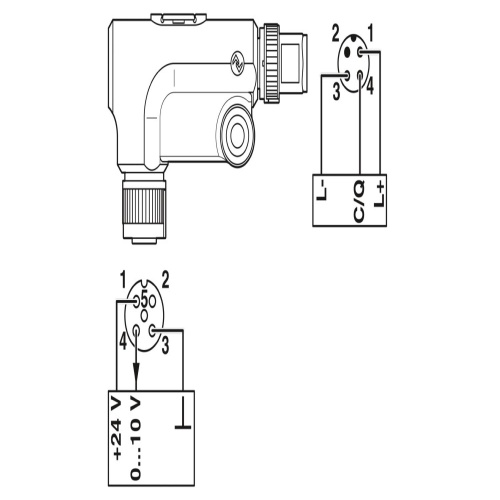

Connection to an IO-Link master with M12 connector (A-coded, 4-pos.)
Angled version
1 analog output
Connection of the actuator in 3-conductor technology via M12 connector (A-coded, 5-pos.)
Voltage range: 0 V ... 10 V
Functional ground connection for local connection to functional ground
Supply of the module electronics and the actuator via the IO-Link interface of the IO-Link master
Local status indicator
IP65/IP67 degree of protection
Downloads
Phoenix 2700278 CAD data International.dxfPhoenix 2700278 CAD data International.pdfPhoenix 2700278 CAD data International.stpPhoenix 2700278 Data Sheet English.pdfPhoenix 2700278 Device Description English.zipPhoenix 2700278 Manual English.pdfPhoenix 2700278 Manufacturers declaration International.pdfPhoenix 2700278 Package Slip International.pdfPhoenix 2700278 Tender Text English.zipPhoenix 2700278 Various English.pdfproduct drawing.dxfsimplified 3d model of the item.stp
