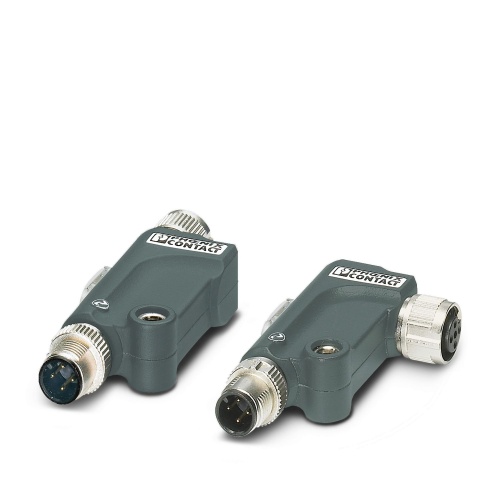

Phoenix Contact 2700282 Axioline IO-Link Converter, M12 Connectors
Normally In Stock
Code: 72663
Connects analog actuators (4-20mA) via M12 connectors, with angled design for flexible installation
Condition: New
Usually ships Same Day or Next Day$193.69
Sale Price
$161.41
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The Phoenix Contact 2700282 Axioline IO-Link/analog converter connects an analog actuator for currents between 4 mA and 20 mA using M12 connectors with an angled design, offering a reliable solution for industrial manufactory applications
Specifications
PLC & IO Network Interface
I/O
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
Remote I/O
Features
IO-Link specification V1.1.1
1 IO-Link interface
IO-Link A port

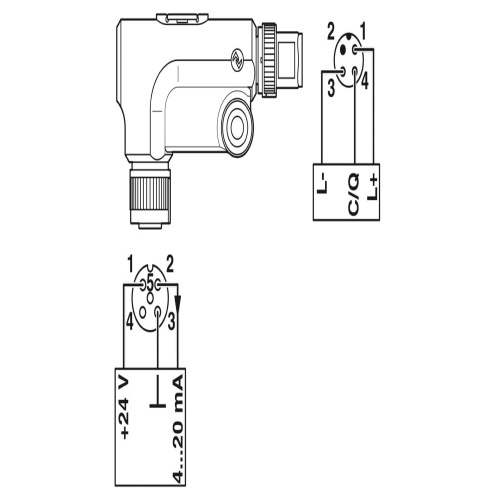

Connection to an IO-Link master with M12 connector (A-coded, 4-pos.)
Angled version
1 analog output
Connection of the actuator in 3-conductor technology via M12 connector (A-coded, 5-pos.)
Current range: 4 mA ... 20 mA
Functional ground connection for local connection to functional ground
Supply of the module electronics and the actuator via the IO-Link interface of the IO-Link master
Local status indicator
IP65/IP67 degree of protection
Downloads
Phoenix 2700282 CAD data International.dxfPhoenix 2700282 CAD data International.pdfPhoenix 2700282 CAD data International.stpPhoenix 2700282 Data Sheet English.pdfPhoenix 2700282 Device Description English.zipPhoenix 2700282 Manual English.pdfPhoenix 2700282 Manufacturers declaration International.pdfPhoenix 2700282 Package Slip International.pdfPhoenix 2700282 Tender Text English.zipPhoenix 2700282 Various English.pdfproduct drawing.dxfsimplified 3d model of the item.stp
