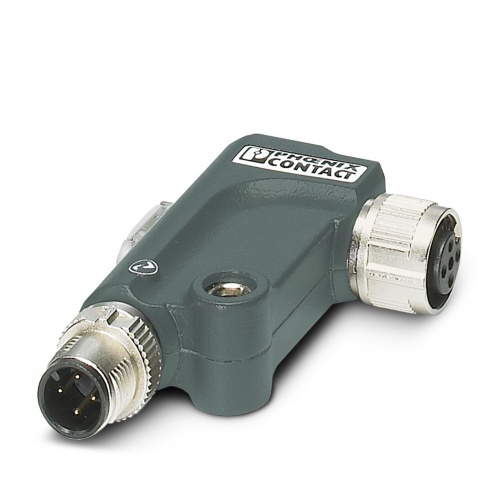

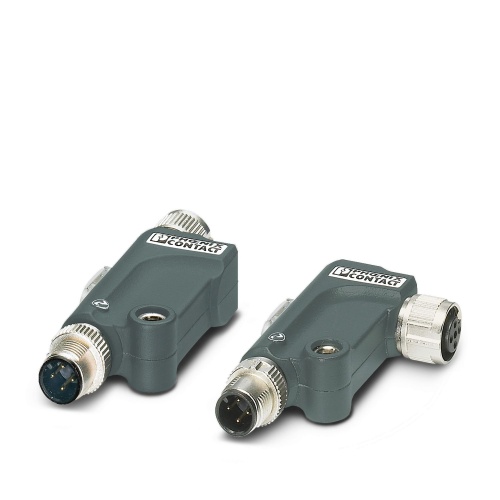

Phoenix Contact 2700305 Analog module AXL E IOL RTD1 M12 R
Normally In Stock
Code: 72665
AXL E IOL RTD1 M12 R Phoenix 2700305 Axioline,IO-Link Distributed I/O device Axioline Distributed I/O device
Condition: New
Usually ships Same Day or Next Day$177.92
Sale Price
$148.27
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

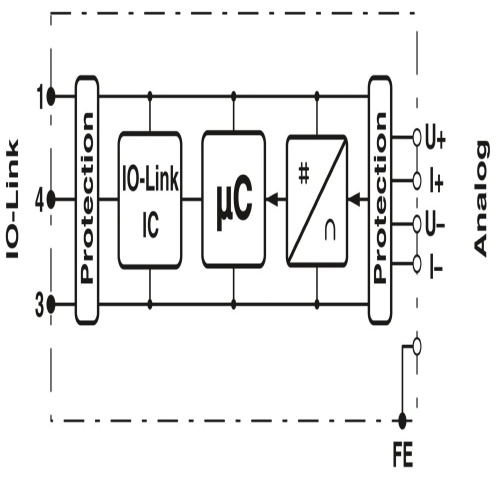

Phoenix Contact 2700305 Axioline IO-Link analog converter used to connect temperature measuring resistors and features M12 connectors in an angled configuration.
Specifications
PLC & IO Network Interface
I/O
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
Remote I/O
Features
IO-Link specification V1.1.1
1 IO-Link interface
IO-Link A port

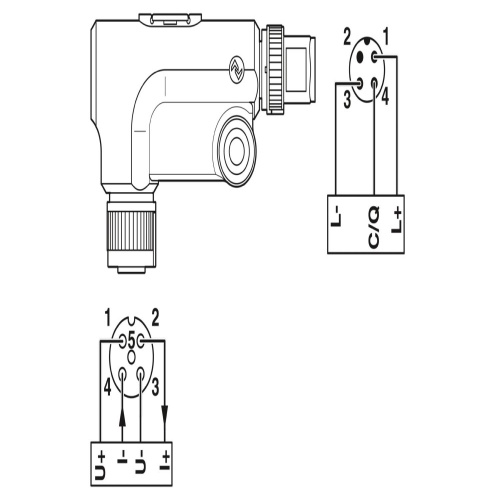

Connection to an IO-Link master with M12 connector (A-coded, 4-pos.)
Angled version
1 analog input for connecting resistance temperature detectors (RTDs)
Connection of the sensor in 3- or 4-conductor technology via an M12 connector (A-coded, 5-pos.)
Voltage range: 0 V ... 10 V
Functional ground connection for local connection to functional ground
Supply of the module electronics and the sensor via the IO-Link interface of the IO-Link master
Local status indicator
IP65/IP67 degree of protection
Downloads
Phoenix 2700305 CAD data International.dxfPhoenix 2700305 CAD data International.pdfPhoenix 2700305 CAD data International.stpPhoenix 2700305 Data Sheet English.pdfPhoenix 2700305 Device Description English.zipPhoenix 2700305 Manual English.pdfPhoenix 2700305 Manufacturers declaration International.pdfPhoenix 2700305 Package Slip International.pdfPhoenix 2700305 Tender Text English.zipPhoenix 2700305 Various English.pdfproduct drawing.dxfsimplified 3d model of the item.stp
