Phoenix Contact 1104974 Safety module PSR-M-B2-SDI8-SDO4-DO4-SC
Normally In Stock
Code: 73024
PSR-M-B2-SDI8-SDO4-DO4-SC Phoenix 1104974 Safety module
Condition: New
Usually ships Same Day or Next Day$689.17
Sale Price
$574.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

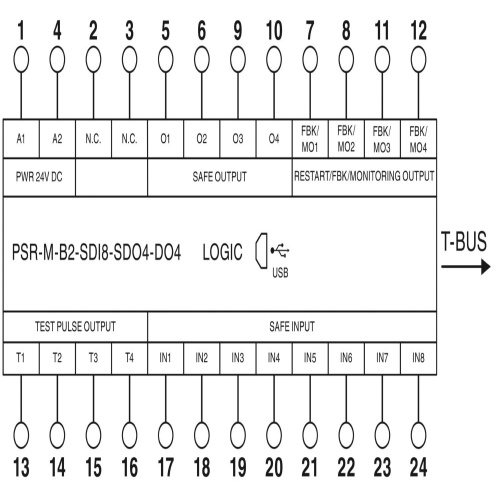

Phoenix Contact 1104974 The configurable safety module features 8 safe inputs, 4 safe outputs, and can be configured with either 4 reset inputs or 4 signal outputs. It also has 4 clock outputs and can be extended through the use of a TBUS connection, with the option to reach SIL level 3, Category 4/PL e safety standards. The module comes equipped with a plug-in screw terminal block, but does not include a TBUS connector.
Specifications
Safety Connection Method
Screw connection
Safety Degree of Protection
IP20
Safety Interfaces
TBUS
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Relay Supply Voltage
24 Volt
Component
Safety Module
Features
Flexible extension with safe inputs and outputs
Fast startup, thanks to easy hardware and software configuration
Machine downtimes minimized with comprehensive, easy-to-understand diagnostics
Cost-effective safety solution with a high level of adaptability to individual requirements
Possibility of connecting fieldbus gateways for bidirectional communication between the base module and the higher-level controller
Low housing width of just 22.6 mm
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
Suitable for elevator applications in accordance with EN 81-20
