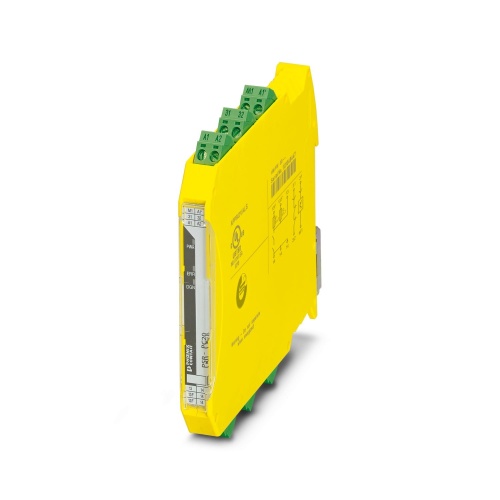

Phoenix Contact 2700577 Coupling relay PSR-PC20-1NO-1NC-24DC-SC
Normally In Stock
Code: 73073
PSR-PC20-1NO-1NC-24DC-SC Phoenix 2700577 Coupling relay
Condition: New
Usually ships Same Day or Next Day$195.59
Sale Price
$162.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2700577 A coupling relay designed for SIL 3 high- and low-demand applications provides connections for various signals including enable current path, confirmation current path, digital signal output, safe state off applications, test pulse filter, TBUS connection, and a plug-in screw terminal block, effectively coupling digital output signals to the periphery.
Specifications
Safety Connection Method
Screw connection
Safety Degree of Protection
IP20
Safety Contact Type
1 enabling current path
Safety Interfaces
TBUS
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Supply Voltage
24 Volt
Features
Approved for Class I, Zone 2 applications
Force-guided contacts in accordance with EN 50205
Easy proof test according to IEC 61508 thanks to integrated signal contact
Up to SIL 3 in accordance with IEC 61508
Low housing width of just 12.5 mm
Enabling current path protected via internal fuse as an option
Long service life thanks to filtering of controller test pulses
1 enabling current path, 1 digital signal output, 1 diagnostic current path

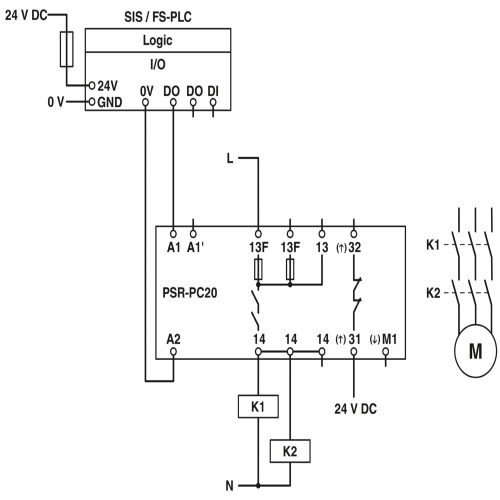

Couples digital output signals from failsafe controllers to I/O devices (valves, etc.) for electrical isolation and power adaptation
Corrosion protection through protective coating on the PCB
