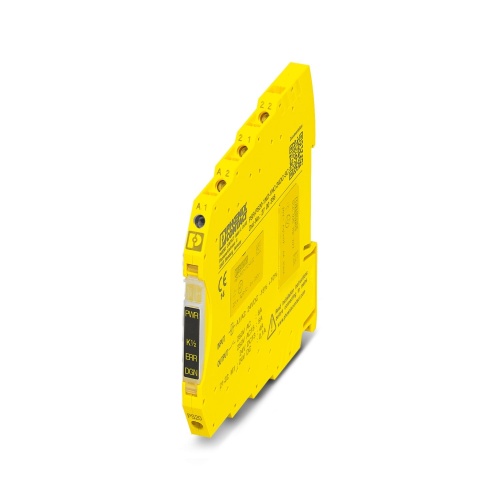

Phoenix Contact 2700356 Coupling relay PSR-PS20-1NO-1NC-24DC-SC
Normally In Stock
Code: 73079
PSR-PS20-1NO-1NC-24DC-SC Phoenix 2700356 Coupling relay
Condition: New
Usually ships within 7-14 days. Call for ship time.$184.08
Sale Price
$153.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2700356 A coupling relay specifically designed for SIL 3 high and low-demand applications serves as an interface between digital output signals and the I/O circuitry, allowing either a current path to be enabled or confirmed, in addition to producing a digital signal output, is also suitable for safe state-off applications. It features a test pulse filter and includes a fixed screw terminal block.
Specifications
Safety Connection Method
Screw connection
Safety Degree of Protection
IP20
Safety Contact Type
1 enabling current path
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Supply Voltage
24 Volt
Features
Approved for Class I, Zone 2 applications
Force-guided contacts in accordance with EN 50205
Easy proof test according to IEC 61508 thanks to integrated signal contact
Up to SIL 3 in accordance with IEC 61508
Low housing width of just 6.8 mm
Long service life thanks to filtering of controller test pulses
1 enabling current path, 1 digital signal output, 1 diagnostic current path

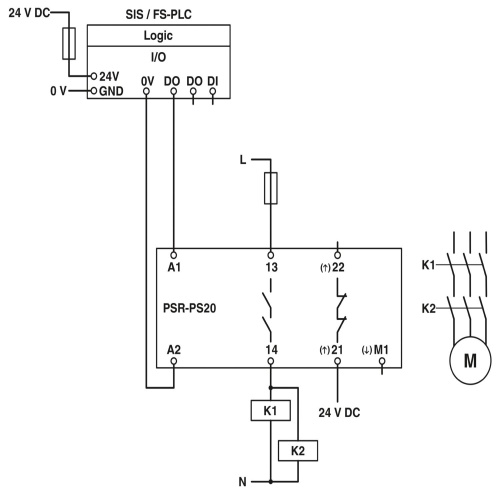

Couples digital output signals from failsafe controllers to I/O devices (valves, etc.) for electrical isolation and power adaptation
Corrosion protection through protective coating on the PCB
