Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

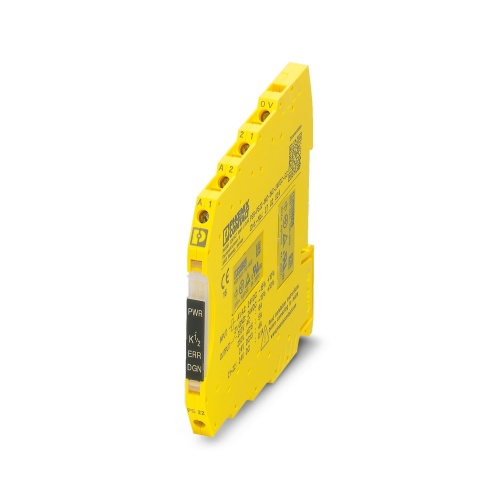

Phoenix Contact 2702524 Coupling relay PSR-PS22-1NO-1NC-24VDC-SC
Normally In Stock
Code: 73091
PSR-PS22-1NO-1NC-24VDC-SC Phoenix 2702524 Coupling relay
Condition: New
Usually ships Same Day or Next Day$189.84
Sale Price
$158.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2702524 A coupling relay suitable for SIL 3 high and low-demand applications features a digital output signal that connects to the I/O bus, allowing for both an enabling current path and a confirmation current path, in addition to supporting safe state off applications, includes a test pulse filter, and has a fixed screw terminal block.
Specifications
Safety Connection Method
Screw connection
Safety Degree of Protection
IP20
Safety Contact Type
1 enabling current path
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Supply Voltage
24 Volt
Features
Low housing width of just 6.8 mm
Force-guided contacts in accordance with EN 50205
Easy proof test according to IEC 61508
Up to SIL 3 in accordance with IEC 61508
Long service life thanks to filtering of controller test pulses

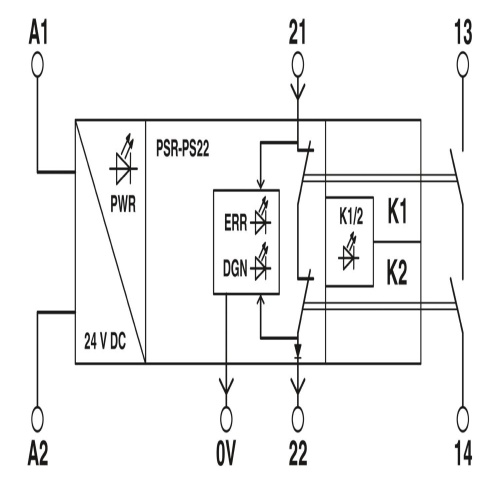

1 enabling current path, 1 diagnostic current path

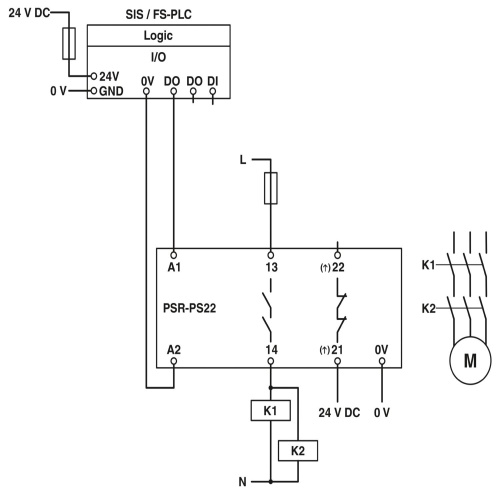

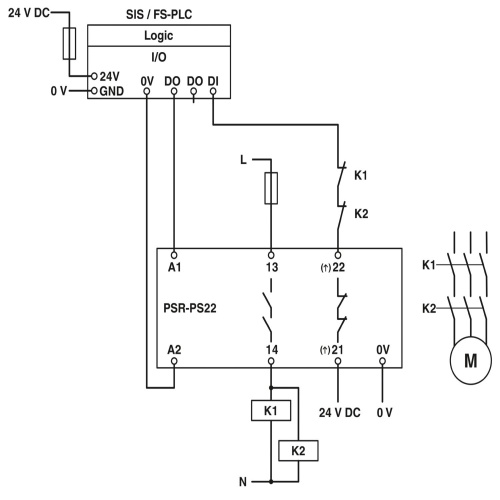

Couples digital output signals from failsafe controllers to I/O devices (valves, etc.) for electrical isolation and power adaptation
Corrosion protection through protective coating on the PCB
Code: 73091
Phoenix Contact 2702524 Coupling relay PSR-PS22-1NO-1NC-24VDC-SC
