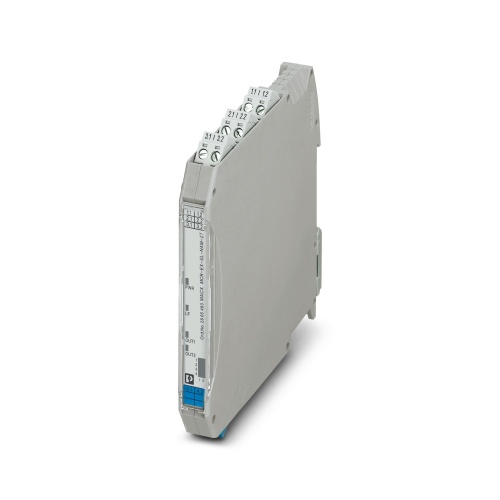

Phoenix Contact 2865463 Isolation switch amplifier MACX MCR-EX-SL-NAM-2T
Normally In Stock
Code: 73097
MACX MCR-EX-SL-NAM-2T Phoenix 2865463 Isolation amplifier
Condition: New
Usually ships within 7-14 days. Call for ship time.$289.44
Sale Price
$241.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2865463 The ExINAMUR isolating amplifier is designed to operate in explosive atmospheres, allowing it to isolate proximity sensors and switches from the hazardous environment while maintaining signal integrity. This device features passive transistor outputs that transmit signals to a safe area, ensuring safe separation of electrical circuits. Additionally, it provides line fault detection (LFD) capabilities and 3-way isolation for added safety, with a SIL rating of 2 indicating its compliance with international safety standards.
Specifications
Safety Connection Method
Screw Connection
Safety Interfaces
Proximity Switches
Safety Degree of Protection
IP20 (Not Assessed By UL)
Sub Component
Isolating Switch Transf.
Manufacturer
Phoenix Contact
Component
Isolation Amplifier
Features
Signal output 2 can also be used as an error signaling output
Up to SIL 2 in accordance with EN 61508
Installation in zone 2, protection type "n" (EN 60079-15) permitted
Power supply and error indication possible via DIN rail connector
Line fault detection (LFD), can be activated/deactivated, error indicated by flashing red LED with disabling of transistor output
LED indicators for supply voltage, switching state, and malfunction in accordance with NAMUR NE 44
4-way electrical isolation
Direction of operation can be selected (operating or closed circuit current behavior)
2 transistor signal outputs (passive)
up to 5 kHz
Input for NAMUR proximity sensors (EN 60947-5-6), floating contacts or contacts with resistance circuit, [Ex ia] IIC
Downloads

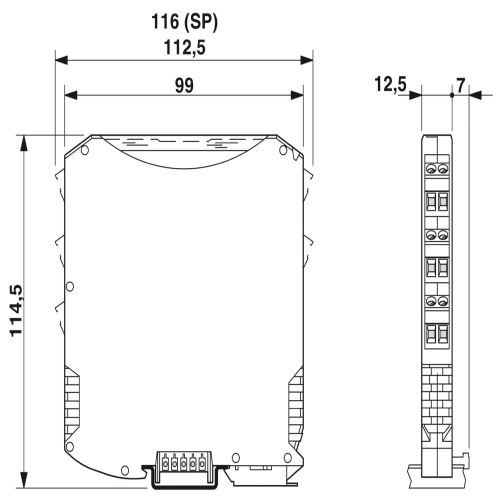

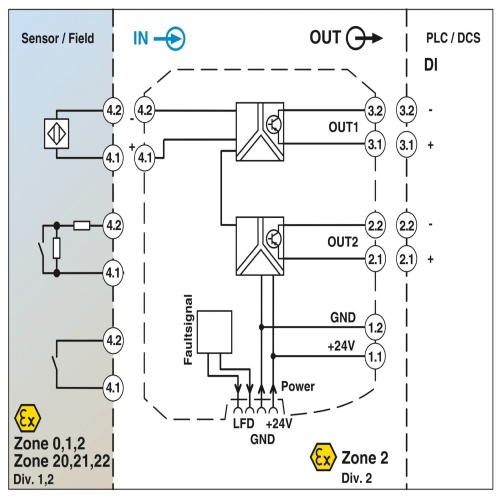

installation version_ clipx engineer device parameterization – uniform operating and parameterization software for phoenix contact devices..stpPhoenix 2865463 Block Diagram.jpgPhoenix 2865463 CAD Drawing.zipPhoenix 2865463 Dimensional Drawing.jpgPhoenix 2865463 Product Sheet.pdfPhoenix 2865463 Spec Sheet.pdfPhoenix 2865463 User Manual.pdfproduct drawing.dxf
