Phoenix Contact 0712275 Thermal device circuit breaker TCP 6A
Normally In Stock
Code: 736084
TCP 6A Phoenix 0712275 Thermal device circuit breakers 6 Amp on base element Protective Devices
Condition: New
Usually ships Same Day or Next Day$20.12
Sale Price
$16.77
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

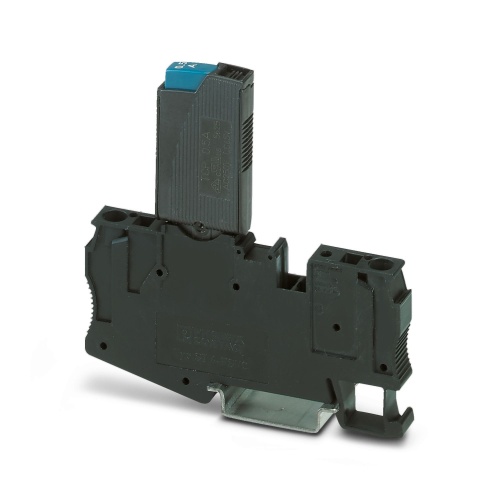

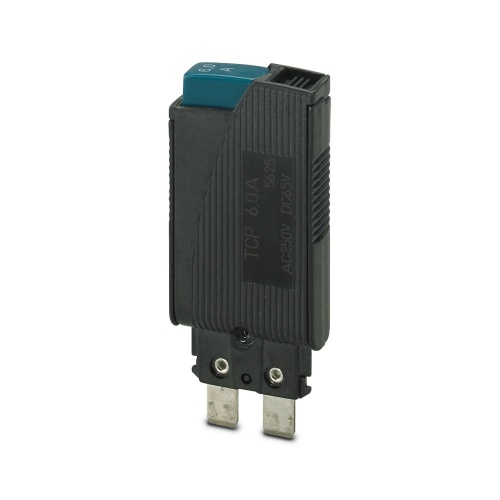

Phoenix Contact 0712275 A one-channel thermal device circuit breaker is designed to protect loads at 250V AC or 72V DC from overloading, providing a safeguard in case of an overload situation. Suitable for installation on fuse terminal blocks and flat plug-in fuses of type C as per ISO standard 8820-3, this device features a fixed nominal current rating of 6A.
Specifications
Breaker Amperage Rating
6 Amp
Breaker Number of Poles
Single Pole
Manufacturer
Phoenix Contact
Component
Thermomagnetic Device Circuit Breaker
Features
Fast, replacement part-free recommissioning after an event with the reconnection options
Easy to retrofit in existing systems with vehicle flat-type fuses with identical pin connector pattern
System disconnection for maintenance actions via the integrated device switch
Downloads
000292280_02_ULCompUS_FILEE140459.pdf000292281_02_ULCompCA_FILEE140459.pdf001253369_01_CCCCN_2025010307749780.pdf001492652_01_UAERoHS_23-10-88896.pdf083130646_04_DoC_EU.pdf097107247_02_DoC_UK.pdfcoc document.pdfdocumentation of the ecological footprint.pdfdocumentation of the ecological footprint.stpeu declaration of conformity.pdfPhoenix 0712275 CAD data International.dxfPhoenix 0712275 CAD data International.pdfPhoenix 0712275 CAD data International.stpPhoenix 0712275 CAD Drawing.zipPhoenix 0712275 Data Sheet English-2.pdfPhoenix 0712275 Data Sheet English.pdfPhoenix 0712275 Flyer English.pdfPhoenix 0712275 Manufacturers declaration International.pdfPhoenix 0712275 Spec Sheet.pdfPhoenix 0712275 Tender Text English.zipPhoenix 0712275 User Manual.pdfPhoenix 0712275 Various English.pdfproduct drawing.dxfproduct drawing.pdfsimplified 3d model of the item.stpuk declaration of conformity.pdf
