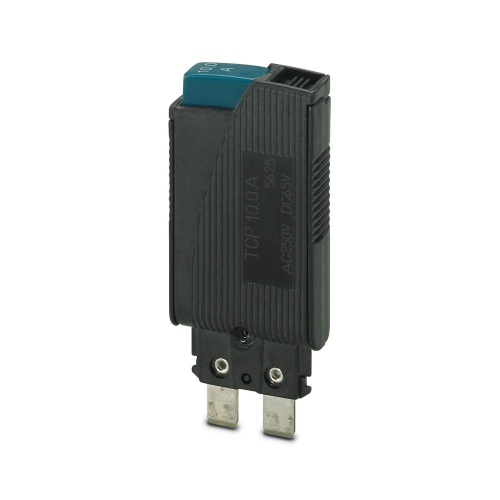

Phoenix Contact 0712314 Thermal device circuit breaker TCP 10A
Normally In Stock
Code: 736086
TCP 10A Phoenix 0712314 Thermal device circuit breakers 10 Amp on base element Protective Devices
Condition: New
Usually ships Same Day or Next Day$24.02
Sale Price
$20.02
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0712314 A 1-channel thermal device circuit breaker is designed to safeguard loads at 250V AC or 72V DC against overload, functioning as a protective measure in such situations. It can be installed on fuse terminal blocks and interfaces that support flat plug-in fuses of type C, adhering to the ISO 8820-3 standard. The nominal current capacity remains fixed at 10A.
Specifications
Breaker Amperage Rating
10 Amp
Breaker Number of Poles
Single Pole
Manufacturer
Phoenix Contact
Component
Thermomagnetic Device Circuit Breaker
Features
Fast, replacement part-free recommissioning after an event with the reconnection options
Easy to retrofit in existing systems with vehicle flat-type fuses with identical pin connector pattern
System disconnection for maintenance actions via the integrated device switch
Downloads
000292280_02_ULCompUS_FILEE140459.pdf000292281_02_ULCompCA_FILEE140459.pdf001253369_01_CCCCN_2025010307749780.pdf001492652_01_UAERoHS_23-10-88896.pdf097107247_02_DoC_UK.pdfcoc document.pdfdocumentation of the ecological footprint.pdfeu declaration of conformity.pdfeu declaration of conformity.stpPhoenix 0712314 CAD data International.dxfPhoenix 0712314 CAD data International.pdfPhoenix 0712314 CAD data International.stpPhoenix 0712314 CAD Drawing.zipPhoenix 0712314 Data Sheet English-2.pdfPhoenix 0712314 Data Sheet English.pdfPhoenix 0712314 Flyer English.pdfPhoenix 0712314 Manufacturers declaration International.pdfPhoenix 0712314 Spec Sheet.pdfPhoenix 0712314 Tender Text English.zipPhoenix 0712314 User Manual.pdfPhoenix 0712314 Various English.pdfproduct drawing.dxfproduct drawing.pdfsimplified 3d model of the item.stpuk declaration of conformity.pdf
