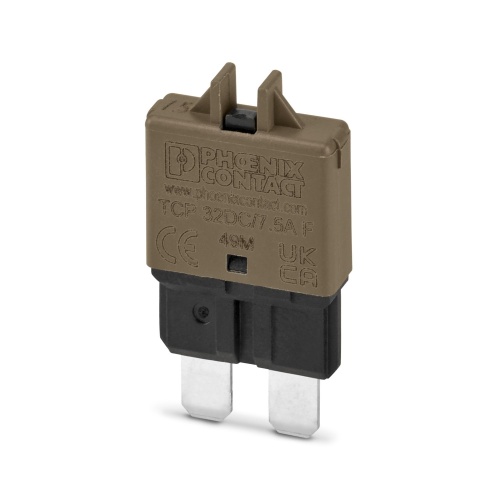

Phoenix Contact 1499941 Thermal device circuit breaker TCP 32DC/7,5A F
Normally In Stock
Code: 737746
Phoenix Contact TCP 32DC/7,5A F - Thermal device circuit breaker, 32 VDC - 1499941
Condition: New
Usually ships Same Day or Next Day$13.94
Sale Price
$11.62
MUST BUY IN PACKS OF 100
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1499941 A one-channel thermal device circuit breaker is designed to safeguard loads up to 32V DC from overloading, featuring a fast-acting fuse type. It can be easily integrated into existing systems by plugging it onto standard fuse terminal blocks and interfaces, allowing for a flat plug-in fuse of type C as specified in ISO 8820-3. Its fixed nominal current rating is 7.5A, providing reliable protection against electrical overloads.
Specifications
Manufacturer
Phoenix Contact
Breaker Voltage Rating
32 VDC
Component
Thermal device circuit breaker
Features
Fast, replacement part-free recommissioning after an event with the reconnection options
Easy to retrofit in existing systems with vehicle flat-type fuses with identical pin connector pattern
Easy identification of the nominal current value via color marking
