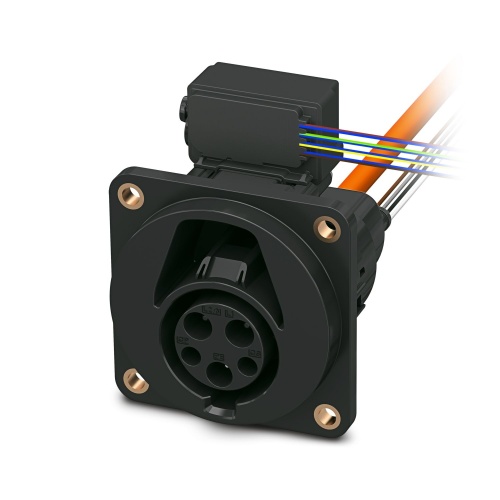

Phoenix Contact 1379288 Vehicle charging inlet CHARX T1HCI12-1AC48-5,0M1
Normally In Stock
Code: 737863
Phoenix Contact CHARX T1HCI12-1AC48-5,0M1 - Charging Inlet, 12 kW, 48 Amp, AC type 1, Mode 2, 3 - 1379288
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$362.70
Sale Price
$302.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

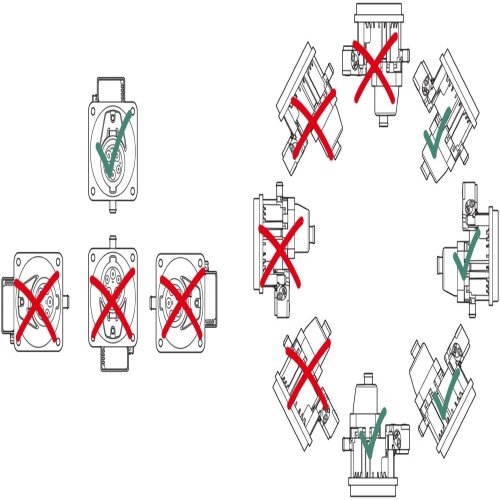

Phoenix Contact 1379288 The CHARX connector is a universal type 1 vehicle charging inlet designed for electric vehicles that use alternating current (AC) charging. It features four single wires with a length of 5 meters and comes equipped with a locking actuator powered by 12-volt DC, and a protective cap is included as standard to shield the AC contacts, meeting international standards such as IEC 62196-2 and SAE J1772, suitable for front and rear mounting using M6 threads.
Specifications
Manufacturer
Phoenix Contact
Amperage
48 Amp
Component
Charging Inlet
Charging Cable Length
1 M
Max Power Per Charging Point
12 Kw
Features
Complete product range
Uniform, space-saving dimensions for the installation space and the screw connection points of all Phoenix Contact vehicle charging inlets
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Integrated interlock during charging
Manual emergency release of the locking actuator
Protected and sealed against dirt and water with a high degree of protection
