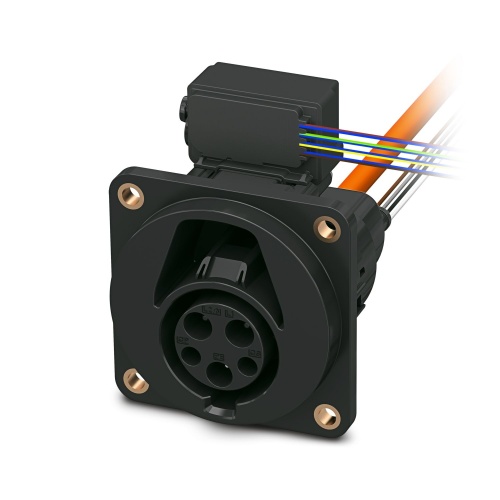

Phoenix Contact 1379294 Vehicle charging inlet CHARX T1HCI12-1AC80-5,0M1
Normally In Stock
Code: 737864
Phoenix Contact CHARX T1HCI12-1AC80-5,0M1 - Charging Inlet, 20 kW, 80 Amp, AC type 1, Mode 2, 3 - 1379294
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$558.56
Sale Price
$465.47
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

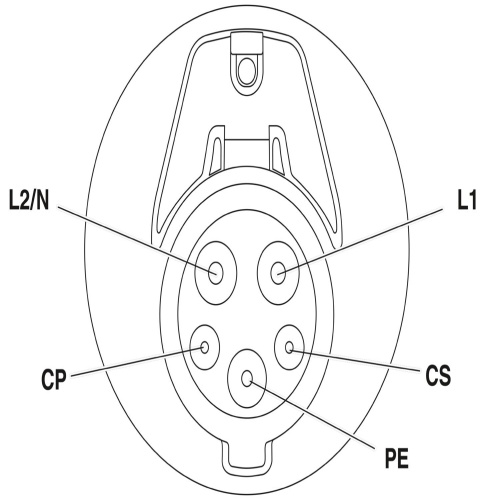

Phoenix Contact 1379294 The CHARX connector is a universal AC type 1 vehicle charging inlet designed for electric vehicles that operate on alternating current, featuring four positions and a length of 5 meters, with locking actuator requiring 12 volts of power, accommodating single wires and coming in black housing with M6 mounting options for both front and rear mounting, meeting standards IEC 62196-2 and SAE J1772, while also including a standard protective cap for the AC contacts.
Specifications
Manufacturer
Phoenix Contact
Amperage
80 Amp
Component
Charging Inlet
Charging Cable Length
1 M
Max Power Per Charging Point
20 kW
Features
Complete product range

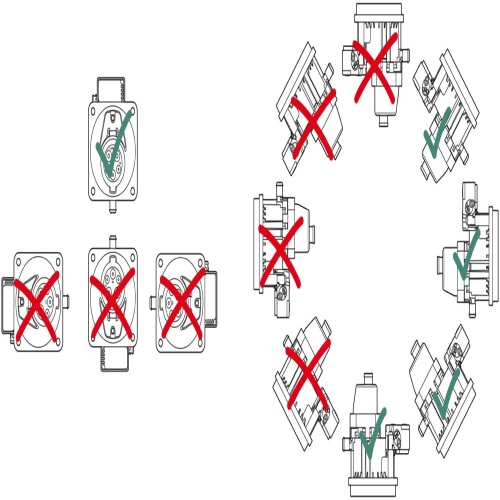

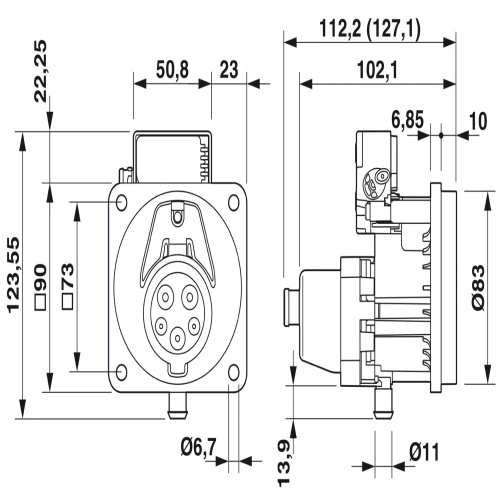

Uniform, space-saving dimensions for the installation space and the screw connection points of all Phoenix Contact vehicle charging inlets
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001

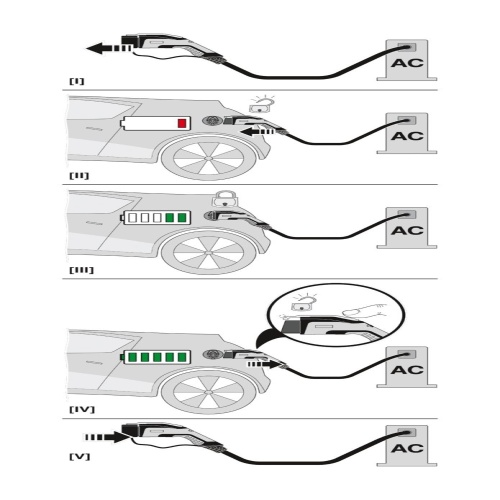

Integrated interlock during charging
Manual emergency release of the locking actuator
Protected and sealed against dirt and water with a high degree of protection
