Phoenix Contact 1432238 Vehicle charging inlet CHARX T1HBI12-1AC80DC200-11M1
Normally In Stock
Code: 737873
Phoenix Contact CHARX T1HBI12-1AC80DC200-11M1 - Charging Inlet, 250 kW, 250 Amp, AC/DC CCS Typ 1, Mode 2, 3, 4 - 1432238
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$2301.76
Sale Price
$1918.13
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

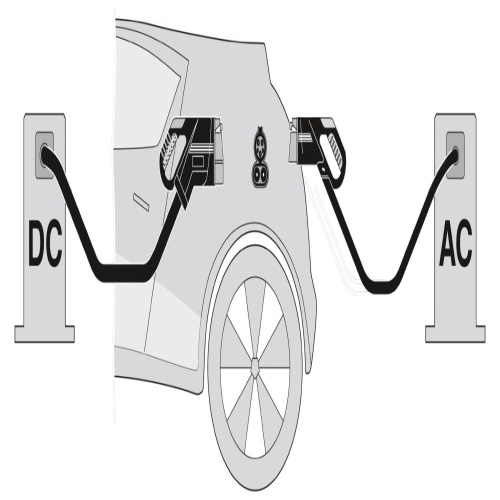

Phoenix Contact 1432238 The CHARX connector features universal compatibility and can be used for both alternating current (AC) and direct current (DC) charging applications, with a maximum capacity of 250A in boost mode and 200A permanently, and specifications that include 1000V DC and 80A, as well as 250V AC, all within a single wire length of 11m, making it suitable for front and rear mounting options using an M6 locking actuator and black housing, meeting IEC standards 62196-2 and 62196-3, with a standard protective cap provided for the DC and AC contacts.
Specifications
Manufacturer
Phoenix Contact
Amperage
250 Amp
Component
Charging Inlet
Charging Cable Length
1 M
Max Power Per Charging Point
250 Kw
Features
Complete product range
Uniform, space-saving dimensions for the installation space and the screw connection points of all Phoenix Contact vehicle charging inlets
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Integrated interlock during charging
Manual emergency release of the locking actuator
Protected and sealed against dirt and water with a high degree of protection
