Phoenix Contact 2702233 Ethernet HART multiplexer GW PL ETH/UNI-BUS
Normally In Stock
Code: 738071
Phoenix Contact GW PL ETH/UNI-BUS - Ethernet HART multiplexer - 2702233
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$2829.59
Sale Price
$2357.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

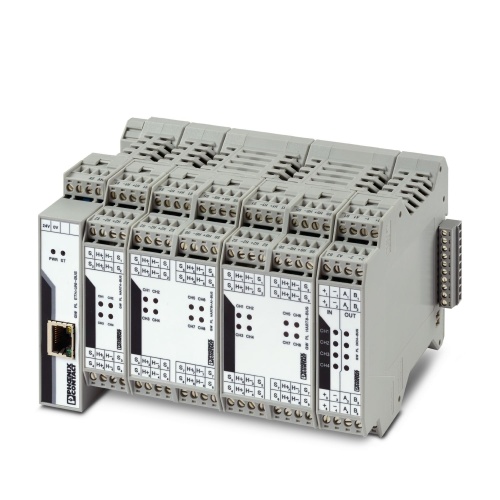

Phoenix Contact 2702233 A modular Ethernet head station is designed for a HART gateway system, allowing it to connect up to five GW PL HART-BUS expansion modules to communicate with a total of 40 HART devices. This device supports multiple protocols including Modbus TCP, OPC UA, PROFINET, HART IP, FDT/DTM and Arcom, enabling seamless communication with various industrial automation systems.
Specifications
Manufacturer
Phoenix Contact
Component
Ethernet HART multiplexer
Features
Available communication DTM integrates into an FDT/DTM container and provides the ability to remotely configure HART instruments
Extended temperature range of -40 °C … +70 °C
Independent HART controller per channel ensures fastest update rates
Monitor PV, SV, TV, QV HART variables using Modbus/TCP or PROFINET
Monitor up to 14 HART variables using OPC UA
Supports Arcom for simple integration into Emerson AMS
Downloads
000894802_01_ULListUS_E238705.pdf000894804_01_ULListCA_E238705.pdf000933218_01_ULListHazlocCA_E196811.pdf001168629_00_DEMKOATEX_DEMKO17ATEX1749X.pdf001168631_00_IECEx_IECExULD170020X.pdfccc-exempt declaration.pdfcoc document.pdfindustrial ethernet - one network, all options.dxfinstallation instructions.pdfPhoenix Data Sheet.pdfSpecification Sheet.pdfuser manual.stp
