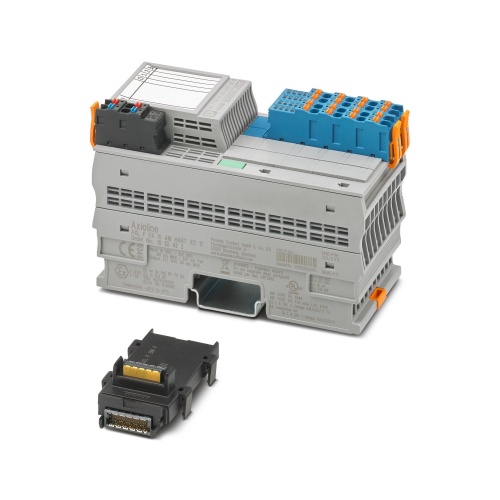

Phoenix Contact 1052432 Axioline F Analog Input Module
Normally In Stock
Code: 764677
Active 4-20mA analog input module with 2-con conductor connections, suitable for extreme conditions with HART functionality
Condition: New
Usually ships Same Day or Next Day$869.03
Sale Price
$724.19
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The Phoenix Contact 1052432 Axioline F is a 4-20 mA analog input module with active inputs and 2-conductor connection technology, designed for extreme conditions and intrinsically safe applications, offering HART functionality and protection against electrical shock
Specifications
PLC & IO Connection Method
Push-in connection
Manufacturer
Phoenix Contact
Component
I/O Component
PLC & IO Mounting Type
DIN Rail
Features
Active analog input module
Sources power for up to 8 HART enabled, passive analog input signals
Cyclic access to PV, SV, TV, QV, and Loop Current
Current range: 4 mA ... 20 mA

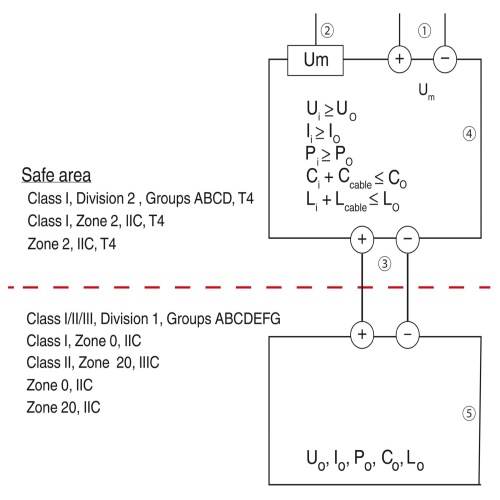

Intrinsically safe analog inputs with connection to Zone 1, Zone 0 or Division 1
Can be used under extreme ambient conditions
Extended temperature range of -40 °C ... +70 °C (see “Tested successfully: use under extreme ambient conditions” in the data sheet)
Downloads
001183332_01_ULListCA_E238705.pdf001295332_01_ULListHazlocUS_FIILEE196811.pdf001295333_01_ULListHazlocCA_FILEE196811.pdf001295334_03_IECEx_IECExUL200044X.pdf001295336_03_DEMKOATEX_DEMKO20ATEX2370X.pdf001398835_03_CCCExCN_2021122316114727.pdfccc-exempt declaration.pdfchina rohs declaration-spreadsheet.pdfChina RoHS Declaration_1052432_05_en.pdfcoc document.pdfeu declaration of conformity.pdffit, mttf, mtbf (predicted failure rate for the statistical demonstration of reliability of the article).pdfiecex certificate.stpPhoenix 1052432 CAD data International.dxfPhoenix 1052432 CAD data International.pdfPhoenix 1052432 CAD data International.stpPhoenix 1052432 Data Sheet English.pdfPhoenix 1052432 Manual English.pdfPhoenix 1052432 Manufacturers declaration English.pdfPhoenix 1052432 Manufacturers declaration International.pdfPhoenix 1052432 Package Slip International.pdfPhoenix 1052432 Product Information English.pdfPhoenix 1052432 Tender Text English.zipPhoenix 1052432 Various English.pdfproduct drawing.dxfSpecification Sheet.pdfuk declaration of conformity.pdf
