Phoenix Contact 1052434 Analog module AXL F AI8 HART XC 1F
Normally In Stock
Code: 764678
Phoenix Contact AXL F AI8 HART XC 1F - Analog module, Push-in connection, DIN Rail Mount, 24 ... 16 AWG - 1052434
Condition: New
Usually ships Same Day or Next Day$907.92
Sale Price
$756.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

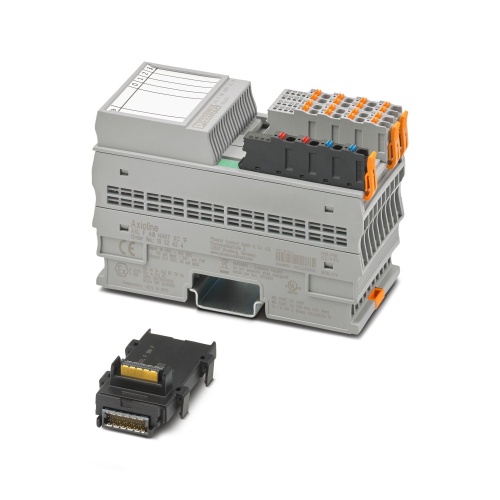

Phoenix Contact 1052434 The Axioline F is an analog input module that features active analog inputs with a range of 4 mA to 20 mA, utilizing a 2-conductor connection technology. It operates at a local bus transmission speed of 100 Mbps and is designed for extreme conditions, including HART functionality. The module also boasts IP20 degree of protection and comes with a bus base module and Axioline F connectors.
Specifications
PLC & IO Connection Method
Push-in connection
Manufacturer
Phoenix Contact
Component
I/O Component
PLC & IO Mounting Type
DIN Rail
Features
Active analog input module
Sources power for up to 8 HART enabled, passive analog input signals
Cyclic access to PV, SV, TV, QV, and Loop Current
Current range: 4 mA ... 20 mA
Can be used under extreme ambient conditions
Extended temperature range of -40 °C ... +70 °C (see “Tested successfully: use under extreme ambient conditions” in the data sheet)
Downloads
001183332_01_ULListCA_E238705.pdf001183333_01_ULListHazlocUS_E196811.pdf001183334_01_ULListHazlocCA_E196811.pdf001271732_04_IECEx_IECExUL200002X.pdf001271733_05_DEMKOATEX_DEMKO20ATEX2334X.pdfchina rohs declaration-spreadsheet.pdfChina RoHS Declaration_1052434_05_en.pdfcoc document.pdfeu declaration of conformity.pdffit, mttf, mtbf (predicted failure rate for the statistical demonstration of reliability of the article).pdfiecex certificate.stpPhoenix 1052434 CAD data International.dxfPhoenix 1052434 CAD data International.pdfPhoenix 1052434 CAD data International.stpPhoenix 1052434 Data Sheet English.pdfPhoenix 1052434 Manual English.pdfPhoenix 1052434 Manufacturers declaration English.pdfPhoenix 1052434 Manufacturers declaration International.pdfPhoenix 1052434 Package Slip International.pdfPhoenix 1052434 Product Information English.pdfPhoenix 1052434 Tender Text English.zipPhoenix 1052434 Various English.pdfproduct drawing.dxfSpecification Sheet.pdf
