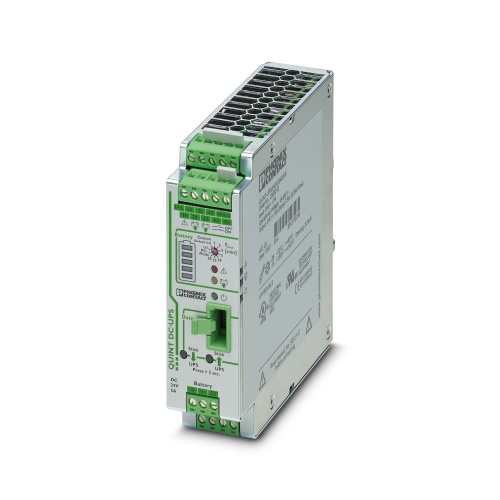

Phoenix Contact 2320212 Uninterruptible power supply QUINT-UPS/24DC/24DC/5
Normally In Stock
Code: 787
Phoenix Contact 2320212 DC/DC UPS 24 VDC 5A WO/Battery QUINT
Condition: New
Usually ships Same Day or Next Day$476.22
Sale Price
$396.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2320212 An uninterruptible power supply system featuring intelligent power management technology is available for installation on a DIN rail and comes equipped with a built-in universal adapter to facilitate easy mounting. The input voltage of the unit is 24V DC, while the output provides a stable 24V DC current at a maximum capacity of 5 amps.
Specifications
Power Supply Mounting
Din Rail Mount
Power Supply Voltage Output
24 VDC
Power Supply Housing
Enclosed
Power Supply Amperage Output
5 Amp
Component
DC UPS
Manufacturer
Phoenix Contact
Power Supply Amperage Output Range
0-5 Amp
Power Supply Voltage Input Range
18 VDC - 30 VDC
Features
Comprehensive signaling and parameterization
Optimum use of the buffer time and preventive monitoring of the energy storage
Rapid battery charging
Easy handling thanks to automatic battery detection, tool-free battery replacement during operation, and communication via the IFS interface
Fast tripping of standard circuit breakers with SFB (selective fuse breaking) technology
Reliable starting of difficult loads with the static POWER BOOST power reserve with up to 1.5 times the nominal current permanently
