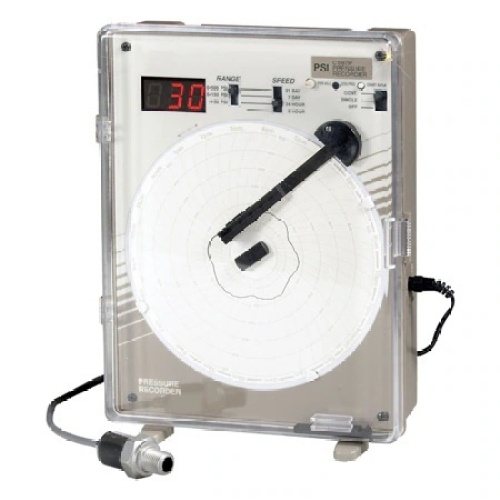

Omega CT87PB Chart Recorder with Pressure Sensor
Normally In Stock
Code: 803178
Omega CT87PB Chart Recorder with Pressure Sensor
Condition: New
Usually ships Same Day or Next Day$1074.05
Sale Price
$895.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Chart Recorder with Pressure Sensor, Circular, 1-CH, 0 bar to 35 bar, Battery Power with Back-Up, 6 hours to 31 Days Chart Time, Adapter for 110 Vac, CT7300 Series, Each
Specifications
Manufacturer
Omega Engineering
Component
Chart Recorder
Sub Component
Chart Recorder with Pressure Sensor
Features
3 Pressure Ranges
4 Recording Speeds
All Front Panel Selectable
Single or Continuous Chart Rotation
Accuracy± 1 %
Accuracy DetailPressure: ±1%, Chart Speed: ±1%
ApprovalsCE
Battery life48 hr
Battery Size and TypeAlkaline AA
Cable Length1.8 m
Cable Length Note1.8 m (6') long 17-4 stainless steel 1⁄4 NPT pressure port, 2500 psi burst pressure, rated for any gas or fluid compatible with 17-4 stainless steel
Chart Diameter152 mm
Chart Rotation ModeSingle turn or Continuous
Chart Speed6 hours, 24 hours, 7 days, 31 days
Display Note3-digit, 13 mm (0.5") LED
Display TypeLED
Height235 mm
Length70 mm
MaterialsPolycarbonate
Measurement TypePressure
MountingFree Standing or Wall Mount
Number of Channels1
Operating Temperature, Max60 °C
Operating Temperature, Min0 °C
Pen TypeInk Style
Relative Humidity0 to 96% RH
Supply Power Note120 Vac, 50/60 Hz, or 220 to 240 Vac, 50/60 Hz (AC adaptor included)
Supply Power TypeAC
Weight2.13 kg
Width184 mm
