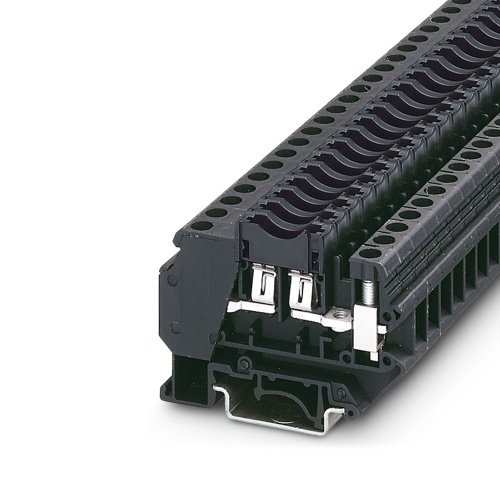

Phoenix Contact 3118203 Fuse modular terminal block UK 6-FSI/C
Normally In Stock
Code: 829

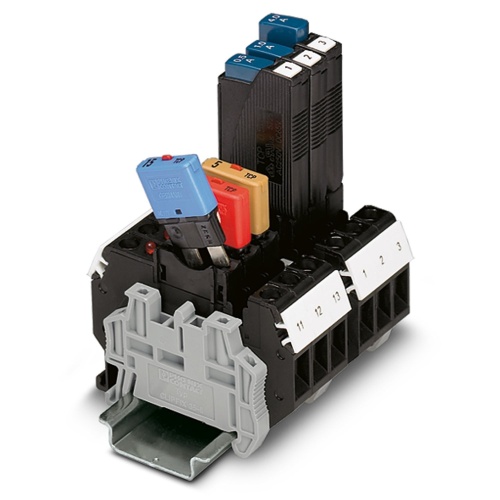

UK 6-FSI/C Phoenix Contact 3118203 Phoenix Contact UK6-FSI/C. 8.2mm Base for Thermal Miniature Breaker or Flat-type Fuse Terminal Block for flat-type fuses, non indicating, 250V, 30A, 26-8 AWG.
Condition: New
Usually Ships Same day or Next Day$14.62
Sale Price
$12.18
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

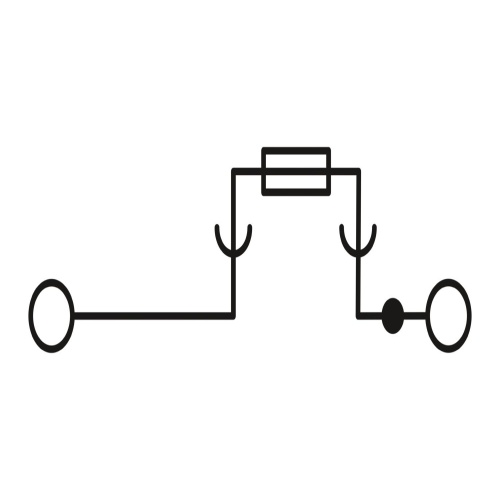

Phoenix Contact 3118203 A modular terminal block with a blade fuse and C-type fuse is available for use in applications at nominal voltage 250 V and current capacity up to 30 A. The single position connection method uses a screw connection, with a rated cross-section of 4 mm2 but accommodating cross-sections from 0.2 mm2 to 10 mm2. It can be mounted using the NS 35/7,5, NS 35/15, or NS 32 mounting types and features a black color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
250 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
8
Terminal Block Component Color
Black
Terminal Block Disconnect
Removable Disconnect
Terminal Block Amperage
30 Amp
Terminal Block Fuse Type
C
Component
Terminal block
Manufacturer
Phoenix Contact
Sub Component
Fuse terminal block
Sub Component
Fuse Modular Terminal Block
Features

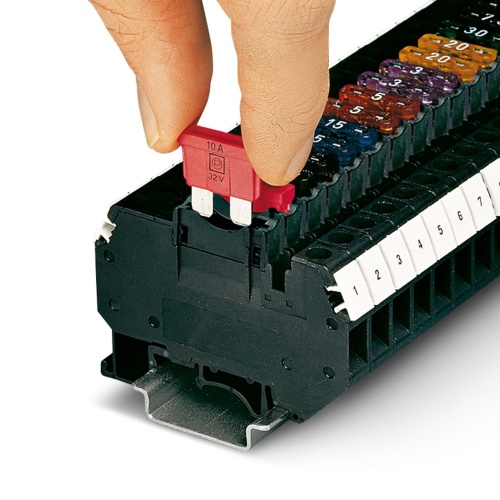

For the use of KFZ flat-type fuses from the FSI/C series

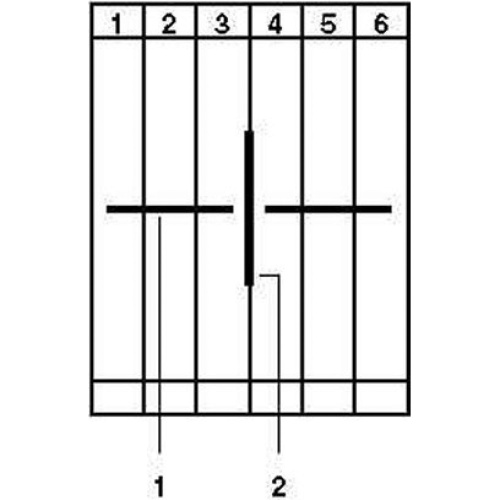

Can be bridged with FBI ... fixed bridge
Downloads
Phoenix 3118203 CAD data International.dxfPhoenix 3118203 CAD data International.pdfPhoenix 3118203 CAD data International.stpPhoenix 3118203 CAD Drawing.zipPhoenix 3118203 Data Sheet 4th Revision.pdfPhoenix 3118203 Data Sheet English-2.pdfPhoenix 3118203 Data Sheet English-3.pdfPhoenix 3118203 Data Sheet English.pdfPhoenix 3118203 Manufacturers declaration English.pdfPhoenix 3118203 Safety note English.pdfPhoenix 3118203 Spec Sheet.pdfPhoenix 3118203 Tender Text English.zipPhoenix 3118203 User Manual.pdf
