Phoenix Contact 1335699 Power supply unit STEP3-PS/1AC/5DC/3/PT/USB-A
Normally In Stock
Code: 830684
Phoenix 1335699 Power supply unit STEP3-PS/1AC/5DC/3/PT/USB-A
Condition: New
Usually ships Same Day or Next Day$55.35
Sale Price
$33.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

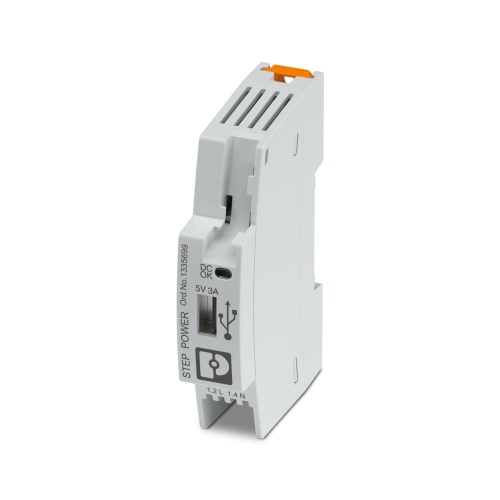

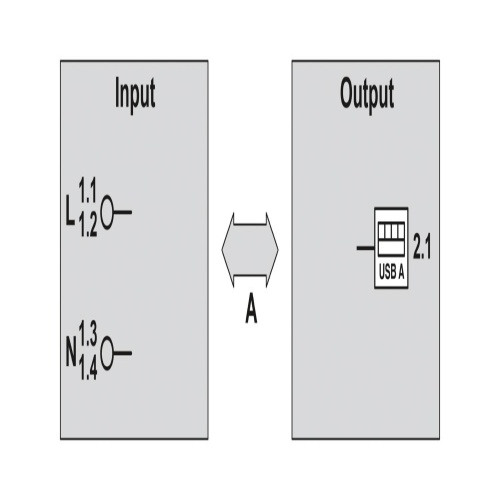

Phoenix Contact 1335699 The STEP POWER power supply unit features a push-in connection, allowing for easy installation on either DIN rail or direct mounting. It also boasts an integrated cable groove with strain relief, making it convenient to manage cables. The device has a primary switch and accepts 1-phase input, delivering a regulated output of 5V DC up to 3A, plus a USB-A port that can handle up to 15W of power.
Specifications
Power Supply Voltage Output
5 VDC
Power Supply Mounting
Din Rail Mount
Component
Power Supply
Manufacturer
Phoenix Contact
Line
STEP
Power Supply Voltage Input Range
110 VDC - 250 VDC
Features

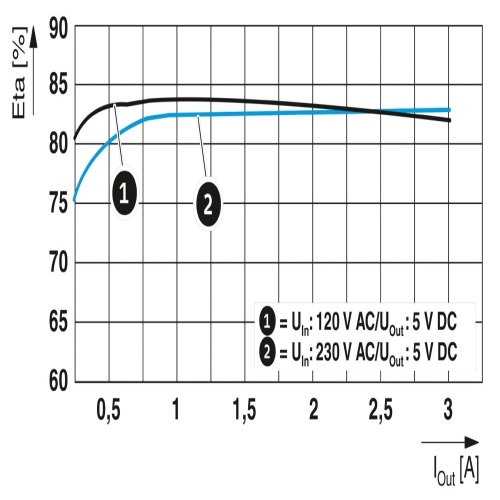

Energy savings with the highest level of efficiency in no-load and part-load operation (Efficiency Level VI)
Space savings in the control cabinet due to the narrow design combined with increased performance (up to 100%)
Approval for household purposes (EN 60335) allows use in domestic applications
Quick and easy startup with tool-free Push-in connection technology at a 45° angle with double terminal points

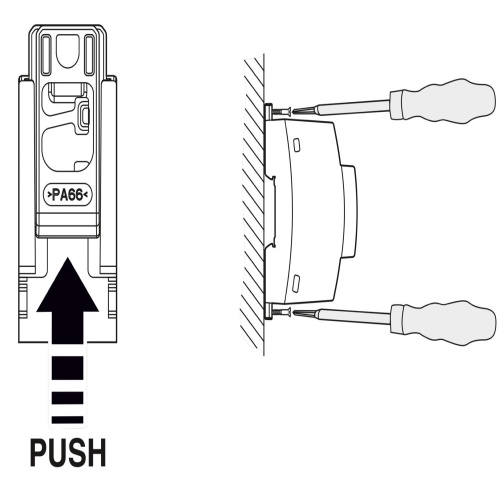

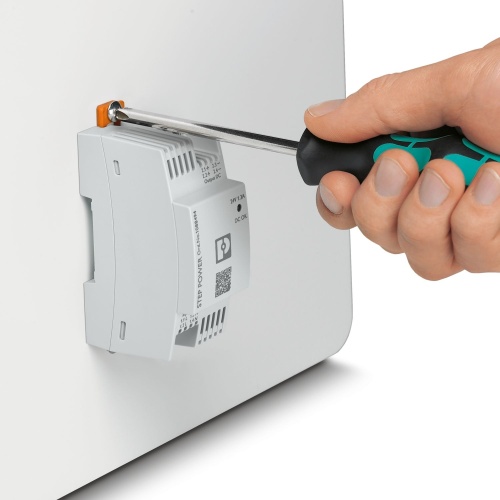

Flexible mounting: Snap onto a DIN rail or screw onto a level surface
