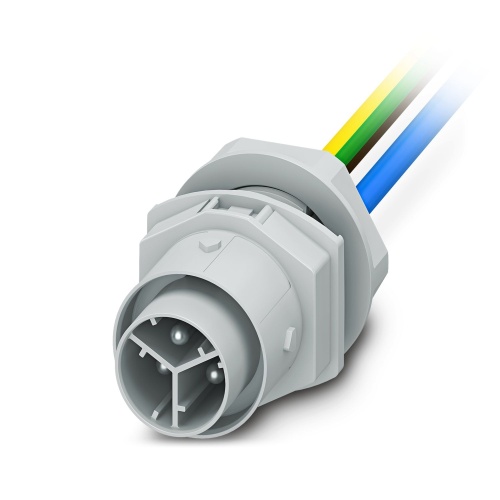

Phoenix Contact 1088700 Panel feed-through IPD W 3P2,5 M 0,5 M20 GY
Normally In Stock
Code: 834397
Phoenix 1088700 Panel feed-through IPD W 3P2,5 M 0,5 M20 GY
Condition: New
Usually ships within 7-14 days. Call for ship time$13.74
Sale Price
$11.45
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1088700 The panel feed-through connector product family is IPD, featuring a single-wire connection method with 2+PE positions, an M20 pin type, and rated for up to 450 V and 17.5 A of current handling. The connector is made of PA material, has a gray color, uses P coding, and comes in a 2.5 mm2 gauge size with a standard cable length of 0.5 meters.
Specifications
Component
Panel feed-through
Manufacturer
Phoenix Contact
Number of Positions
3
Connector Voltage
450 VAC
Features
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies
