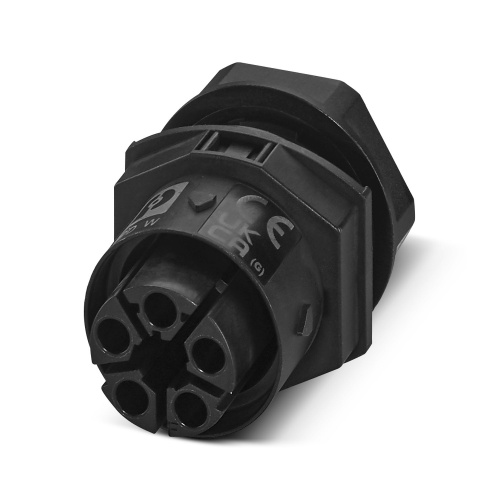

Phoenix Contact 1490378 Panel feed-through IPD W 5F2,5 F M25 BK
Normally In Stock
Code: 834406
Phoenix 1490378 Panel feed-through IPD W 5F2,5 F M25 BK
Condition: New
Usually ships within 7-14 days. Call for ship time$20.08
Sale Price
$16.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1490378 The panel feed-through for connectors in the IPD product family uses a push-in connection with up to four positions available for M25 sockets ranging from 0.5mm^2 to 2.5mm^2 current rating at 600V and a maximum current of 17.5A, featuring a black PA material coding denoted as F.
Specifications
Component
Panel feed-through
Manufacturer
Phoenix Contact
Connector Voltage
600 VAC
Number of Positions
5
Features
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies
