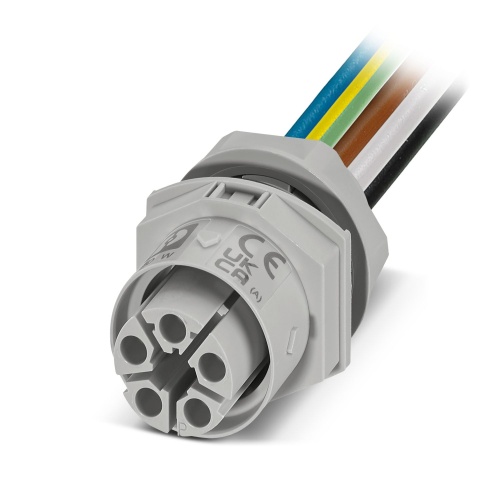

Phoenix Contact 1088705 Panel feed-through IPD W 5P2,5 F 0,5 M25 GY
Normally In Stock
Code: 834409
Phoenix 1088705 Panel feed-through IPD W 5P2,5 F 0,5 M25 GY
Condition: New
Usually ships within 7-14 days. Call for ship time$17.41
Sale Price
$14.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1088705 The panel feed-through product is part of the IPD connector family and features a single wire connection method with four or more positions for expansion. It has an M25 socket and operates at 450 V with a maximum current rating of 17.5 A, suitable for PA-rated applications. The product comes in a gray color with a coding scheme denoted as "P" and is equipped with a cable of 2.5 mm2 cross-sectional area.
Specifications
Component
Panel Feed-Through
Manufacturer
Phoenix Contact
Number of Positions
5
Connector Voltage
450 VAC
Features
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies
