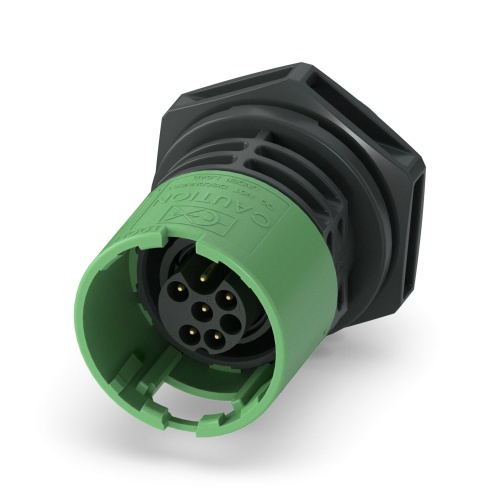

Phoenix Contact 1636039 Device connector front mounting PRC 20/M17-5E-FT25-MC GN
Normally In Stock
Code: 834414
Phoenix 1636039 Device connector front mounting PRC 20/M17-5E-FT25-MC GN
Condition: New
Usually ships within 7-14 days. Call for ship time$10.26
Sale Price
$8.55
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1636039 A device connector designed for front mounting has a straight configuration and is colored black, accommodating up to six positions, with conductor cross sections ranging from 0.75 mm² to 1 mm². It's rated for Dreiphasig 630 V AC and can handle a maximum current of 8 A, utilizing crimp connections with pin contacts. The cable diameter can vary between 6 mm and 14 mm, offering a setting option that allows for either tool-assisted or manual release.
Specifications
Component
Panel feed-through
Manufacturer
Phoenix Contact
Number of Positions
6
Features
Duo-Unlock technology for greater flexibility during installation and maintenance
Reliable use under extreme ambient conditions with high degrees of protection and impact strength
Easy handling with proven crimp connection technology
Mechanical and color coding for quick and error-free startup
