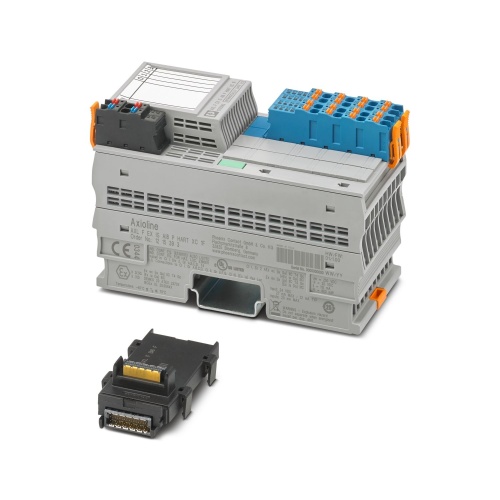

Phoenix Contact 1215393 Analog Input Module for HART
Normally In Stock
Code: 836879
Supports 8 HART channels, 0-20mA/4-20mA input range, 100Mbps local bus, and IP20 protection for intrinsically safe applications
Condition: New
Usually ships within 7-14 days. Call for ship time.*NON-CANCELLABLE, NON-RETURNABLE*
$1051.06
Sale Price
$875.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The Phoenix Contact Axioline F is an analog input module supporting 8 HART channels (0-20 mA or 4-20 mA ranges) via passive inputs with a local bus transmission speed of 100 Mbps, featuring 2-conductor connection technology and IP20 degree protection for intrinsically safe operation
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Push-in connection
Manufacturer
Phoenix Contact
Component
Analog Module
PLC & IO Type
Axioline F
Features
Passive analog input module
Sinks power from up to eight HART enabled, active analog input signals
Cyclic access to PV, SV, TV, QV, and Loop Current
Current ranges: 0 mA ... 20 mA, 4 mA ... 20 mA

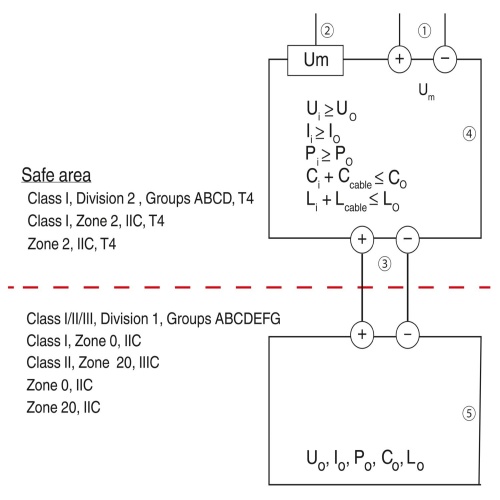

Intrinsically safe analog inputs with connection to Zone 1, Zone 0 or Division 1
Can be used under extreme ambient conditions
Extended temperature range of -40 °C ... +70 °C (see “Tested successfully: use under extreme ambient conditions” in the data sheet)
