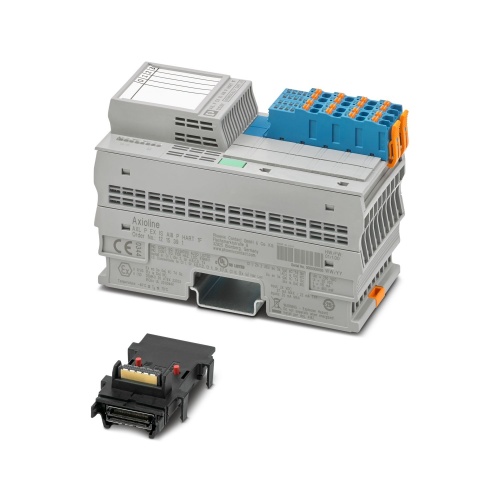

Phoenix Contact 1215391 Analog module AXL P EX IS AI8 P HART 1F
Normally In Stock
Code: 836882
Phoenix 1215391 Analog module AXL P EX IS AI8 P HART 1F
Condition: New
Usually ships within 7-14 days. Call for ship time.*NON-CANCELLABLE, NON-RETURNABLE*
$1501.50
Sale Price
$1251.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1215391 The Axioline P is an analog input module that features passive analog inputs with eight different ranges (0-20 mA and 4-20 mA) connected via a 2-conductor cable, allowing for transmission speeds of up to 100 Mbps on the local bus, supporting HART functionality, and boasting intrinsically safe capabilities with a degree of protection rating of IP20, encompassing both the base module and Axioline P connectors.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Push-in connection
Manufacturer
Phoenix Contact
Component
Analog Module
PLC & IO Type
Axioline P
Features
Passive analog input module
Sinks power from up to eight HART enabled, active analog input signals
Cyclic access to PV, SV, TV, QV, and Loop Current
Current ranges: 0 mA ... 20 mA, 4 mA ... 20 mA
Intrinsically safe analog inputs with connection to Zone 1, Zone 0 or Division 1
Can be used under extreme ambient conditions
Temperature range: -40 °C ... +70 °C
Hot-swappable
