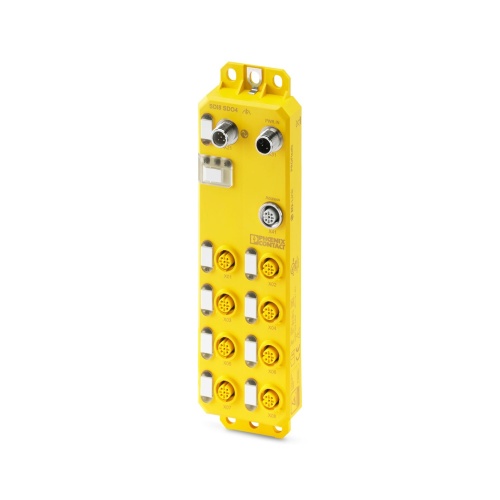

Phoenix Contact 1185380 Safety module AXL E IOL SDI8 SDO4 2A M12 L
Normally In Stock
Code: 836912
Phoenix 1185380 Safety module AXL E IOL SDI8 SDO4 2A M12 L
Condition: New
Usually ships within 7-14 days. Call for ship time.*NON-CANCELLABLE, NON-RETURNABLE*
$836.88
Sale Price
$697.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1185380 The Axioline-e-safety module features safe digital inputs for both 2-channel and 1-channel assignments, as well as safe digital +/-switching outputs. It also includes an IO-Link interface and has a high level of protection with IP65/IP67 degree of protection, making it suitable for use in PROFIsafe systems.
Specifications
PLC & IO Degree of Protection
IP65/IP67
PLC & IO Connection Method
M12 connector
Manufacturer
Phoenix Contact
Component
Safety Module
PLC & IO Type
Axioline E
PLC & IO Transmission Speed
230.4 kbps (COM3)
Features
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
Minimum installation effort with control-cabinet-free mounting
Safe outputs with up to 2 A
Long service life and high system availability with the robust design
Connection of safe sensors and actuators directly at field level
Easy device addressing with address plug
