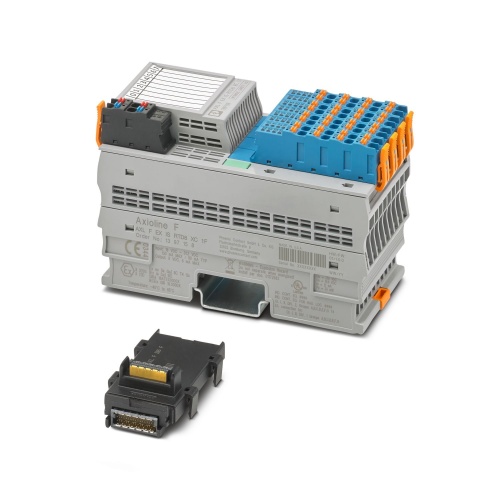

Phoenix Contact 1397158 Axioline F Temp Recording Module IP20
Normally In Stock
Code: 836918
Analog input RTD measurements with high-speed data transmission and intrinsic safety in extreme temps
Condition: New
Usually ships within 7-14 days. Call for ship time.$991.00
Sale Price
$825.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The Phoenix Contact 1397158 Axioline F temperature recording module provides precise temperature measurement via analog inputs for RTDs, enabling fast data transmission of up to 100 Mbps on its local bus for accurate temperature control in industrial manufacturing applications
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Push-in connection
Manufacturer
Phoenix Contact
PLC & IO Type
Axioline F
Component
Temperature module
Features
8 analog input channels for the connection of resistance temperature detectors (RTD)
500 Ω, 5 kΩ, and 10 kΩ linear inputs

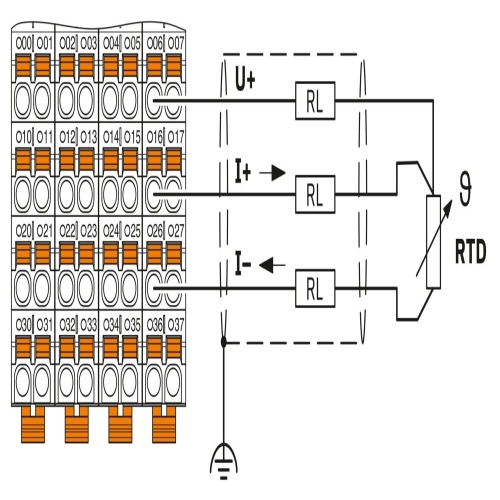

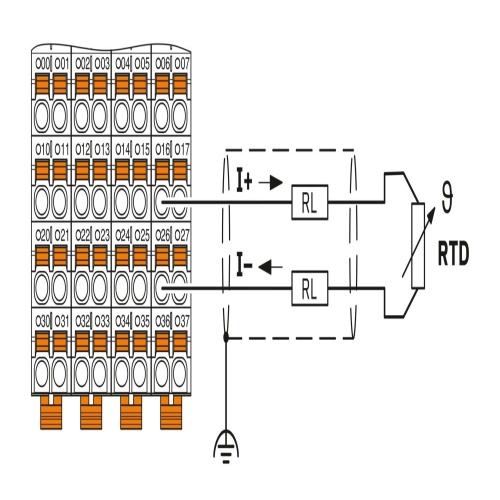

Connection of sensors in 2-, 3-, and 4-conductor technology
Integrated, digital sensor linearization
Standardized measured value representation directly in °C, °F or Ω
Measured value display in 16-bit format or floating point format
Programmable filters
Short-circuit protected inputs
Temperature stability
Very high level of noise immunity
Low noise emission
Can be used under extreme ambient conditions
Extended temperature range of -40°C ... +70°C
Partially coated PCBs
Device rating plate stored
