Phoenix Contact 1397156 Axioline PRTD Temperature Module
Normally In Stock
Code: 836920
High-speed RTD input temperature control unit with IP20 protection, providing precise temperature management in harsh environments
Condition: New
Usually ships within 7-14 days. Call for ship time.*NON-CANCELLABLE, NON-RETURNABLE*
$991.00
Sale Price
$825.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The Phoenix Contact 1397156 Axioline P boasts a built-in temperature recording module, transmitting local bus signals at 100 Mbps with RTD functionality, featuring shielded connections for reliable data transfer, immunity to EMI, and IP20 protection
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Push-in connection
Manufacturer
Phoenix Contact
PLC & IO Type
Axioline P
Component
Temperature module
Features
8 analog input channels for the connection of resistance temperature detectors (RTD)
500 Ω, 5 kΩ, and 10 kΩ linear inputs

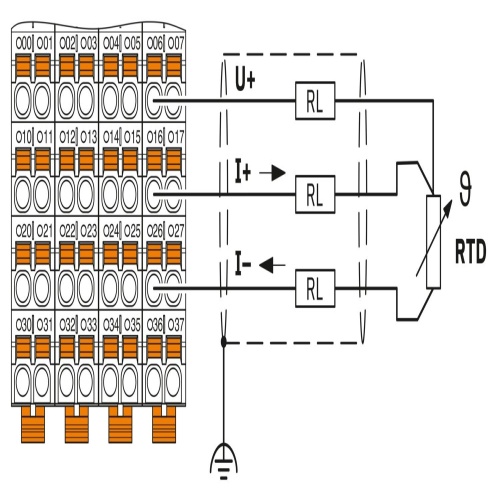

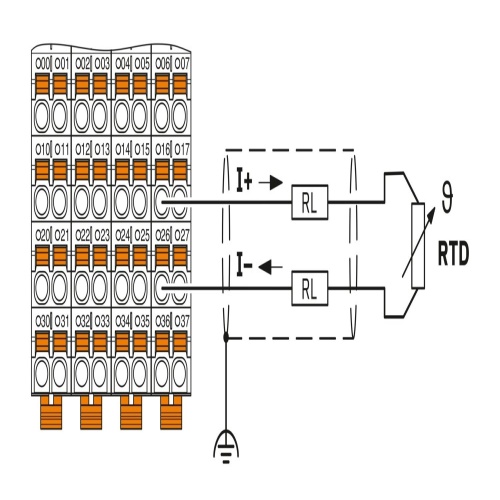

Connection of sensors in 2-, 3-, and 4-conductor technology
Integrated, digital sensor linearization
Standardized measured value representation directly in °C, °F or Ω
Measured value display in 16-bit format or floating point format
Programmable filters
Short-circuit protected inputs
Temperature stability
Very high level of noise immunity
Low noise emission
Can be used under extreme ambient conditions
Extended temperature range of -40°C ... +70°C
Hot-swappable
Device rating plate stored
