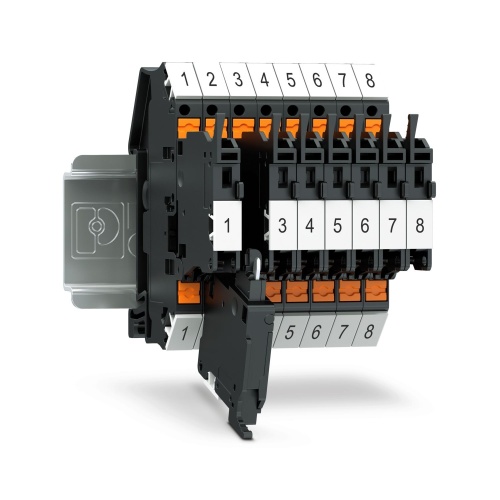

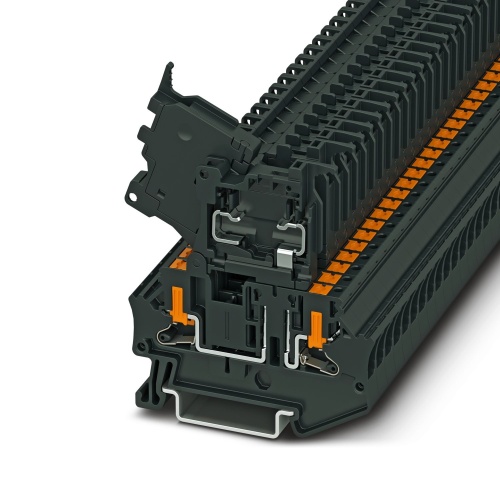

Phoenix Contact 1088742 Fuse modular terminal block PTV 4-HESI (5X20)
Normally In Stock
Code: 837060
Phoenix 1088742 Fuse modular terminal block PTV 4-HESI (5X20)
Condition: New
Usually ships within 7-14 days. Call for ship time.$9.35
Sale Price
$7.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

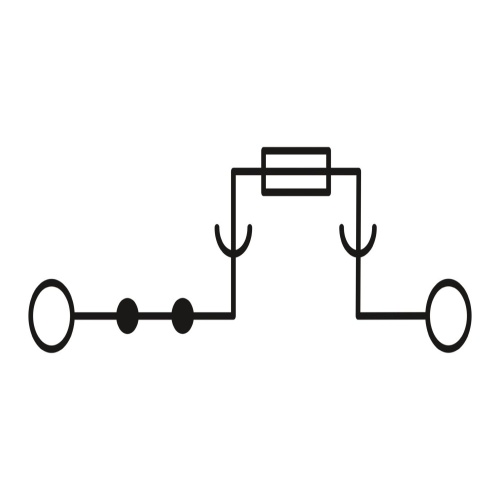

Phoenix Contact 1088742 A fuse terminal block with a glass/ceramic fuse is available in a G type configuration measuring 5 x 20mm and rated for 500V and 6.3A of current, allowing for push-in connections at one level. The rated cross-sectional area is 4mm², spanning from 0.2 to 6mm², and can be mounted using the NS35/7.5 or NS35/15 types, with a color specification of black.
Specifications
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Black
Component
Terminal block
Manufacturer
Phoenix Contact
Terminal Block Amperage
6.3 Amp
Sub Component
Fuse terminal block
Features
Even with connected conductors, the levers can be opened completely and without problems thanks to the lateral conductor connection.
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Tested for railway applications
