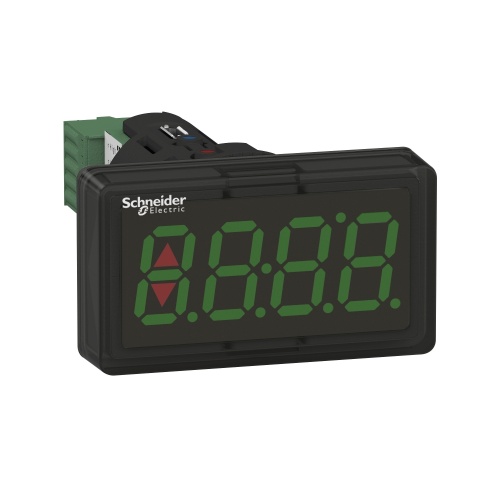

Schneider Electric XBH1AA0G4 Display Module for Harsh Environments
Normally In Stock
Code: 87748

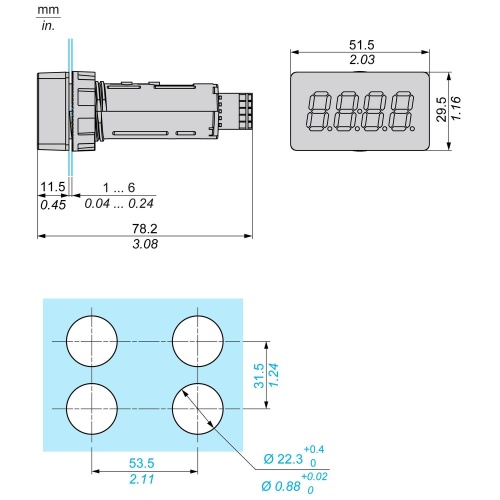

Schneider XBH1AA0G4 Display module Harmony XB5 0.89 in (22.5 mm Spring terminals, 1 x 0.2-1 mm² AWG 24-AWG 17 1.16 in (29.5 mm 2.03 in (51.5 mm 3.08 in (78.2 mm 0.07 lb(US (0.032 kg 1.3 N.m, 11.5 lb.in -4-185 °F (-20-85 °C -4-140 °F (-20-60 °C IP65 IEC 60529 front panel EN 61326-
Condition: New
Usually ships Same Day or Next Day$75.02
Sale Price
$62.52
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The display module offers a robust interface that can withstand extreme conditions including high impact, dust, water, corrosion, and vibrations due to its IP65 rating, making it suitable for use in harsh environments.
Specifications
(Switching-Indication) Size
22 mm
(Switching-Indication) IP Rating
IP65 IEC 60529 front panel
Manufacturer
Schneider Electric
Component
Accessories
Sub Component
Panel Meter
Features
Quick and easy assembly and disassembly
Robustness to withstand harsh environments
With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
