Schneider Electric EGB26020 E-Frame Breaker Overview
Normally In Stock
Code: 91463

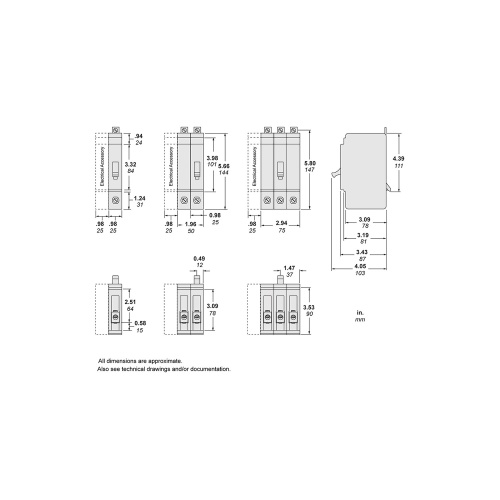

Schneider EGB26020 20 A Circuit-breaker EGB 18 kA 600Y/347 VAC 125 A Frame EDB-EGB-EJB 2 2 00936-EGB CIRCUIT BREAKERS 30.09 lbf.in (3.4 N.m 0.00-0.02 in² (2.5-16 mm² AWG 14-AWG 6 5.66 in (143.76 mm 4.05 in (102.87 mm 1.96 in (49.78 mm DE2 00785901412397 2.52 lb(US (1.145 kg Yes M
Condition: New
CALL FOR LEAD TIME$950.34
Sale Price
$791.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The E-Frame Breaker is a reliable and robust lighting panelboard circuit breaker designed specifically for use in Square D NF Panelboards, offering superior overload and short circuit protection with features such as thermal-magnetic trip units and signal indicators. It has a 20A, 2-pole configuration, operating voltage of 600Y/347 VAC, and a max interrupt rating of 65 kA at 120 VAC, along with a hold current of 270A and tripping current of 875A.
Specifications
Breaker Amperage Rating
20 Amp
Breaker Number of Poles
Two Pole
Breaker Voltage Rating
600Y VAC
Breaker Voltage Rating
347 VAC
Component
Miniature Circuit Breaker
Manufacturer
Schneider Electric
Manufacturer
Square D
Features
Used in lighting panelboards
Superior overload and short circuit protection
From 15A to 125A ratings
