Schneider Electric EDB26070 E-Frame Breaker Square D NF Panelboards Offered
Normally In Stock
Code: 91545

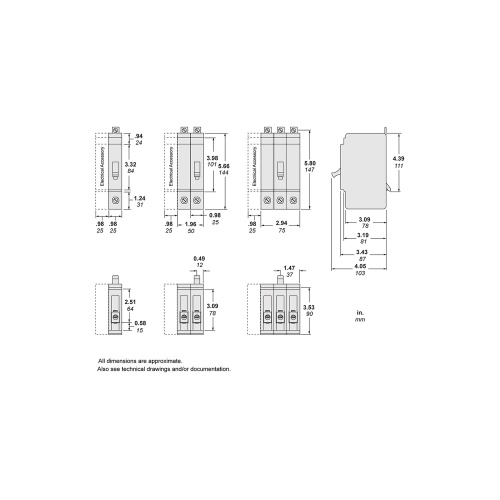

Schneider EDB26070 70 A Circuit-breaker EDB 14 kA 600Y/347 VAC 125 A Frame EDB-EGB-EJB 2 2 00931 - EDB CIRCUIT BREAKERS 34.52 lbf.in (3.9 N.m 0.00-0.01 in² (2.5-6 mm² AWG 14-AWG 10, 49.56 lbf.in (5.6 N.m 0.02-0.11 in² (10-70 mm² AWG 8-AWG 2/0 5.66 in (143.76 mm 4.05 in (102.87 mm
Condition: New
CALL FOR LEAD TIME$1482.59
Sale Price
$1235.49
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
The E-Frame Breaker is a reliable circuit breaker designed specifically for Square D NF Panelboards, providing superior overload and short circuit protection with a thermal-magnetic trip unit and signal indicator. It features a 70A, 2-pole design with an operating voltage of 600Y/347 VAC and a maximum interrupt rating of 25 kA at 120VAC.
Specifications
Breaker Number of Poles
Two Pole
Breaker Amperage Rating
70 Amp
Breaker Voltage Rating
600Y VAC
Breaker Voltage Rating
347 VAC
Component
Miniature Circuit Breaker
Manufacturer
Schneider Electric
Manufacturer
Square D
Features
Used in lighting panelboards
Superior overload and short circuit protection
From 15A to 125A ratings
