Schneider Electric EDB26045 Square D NF Panelboard Breakers
Normally In Stock
Code: 91547

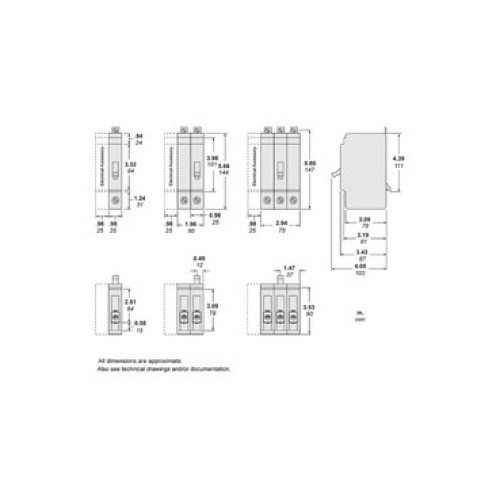

Schneider EDB26045 45 A Circuit-breaker EDB 14 kA 600Y/347 VAC 125 A Frame EDB-EGB-EJB 2 2 00931-EDB CIRCUIT BREAKERS 34.52 lbf.in (3.9 N.m 0.00-0.01 in² (2.5-6 mm² AWG 14-AWG 10, 49.56 lbf.in (5.6 N.m 0.02-0.11 in² (10-70 mm² AWG 8-AWG 2/0 5.66 in (143.76 mm 4.05 in (102.87 mm 1
Condition: New
CALL FOR LEAD TIME$679.21
Sale Price
$566.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
E-Frame Breakers, specifically designed for Square D NF Panelboards, offer robust features and superior overload and short circuit protection with a thermal-magnetic trip unit and signal indicator. They feature mounting bolts for secure installation, operate at 600Y/347 VAC, and have a maximum interrupt rating of 25 kA at 120 VAC, while also providing hold current and trip currents to ensure reliable operation.
Specifications
Breaker Number of Poles
Two Pole
Breaker Amperage Rating
45 Amp
Breaker Voltage Rating
600Y VAC
Breaker Voltage Rating
347 VAC
Component
Miniature Circuit Breaker
Manufacturer
Schneider Electric
Manufacturer
Square D
Features
Used in lighting panelboards
Superior overload and short circuit protection
From 15A to 125A ratings
