Schneider Electric EDB16035 E-Frame Breakers: Reliable Square D NF Panelboard Options
Normally In Stock
Code: 91569

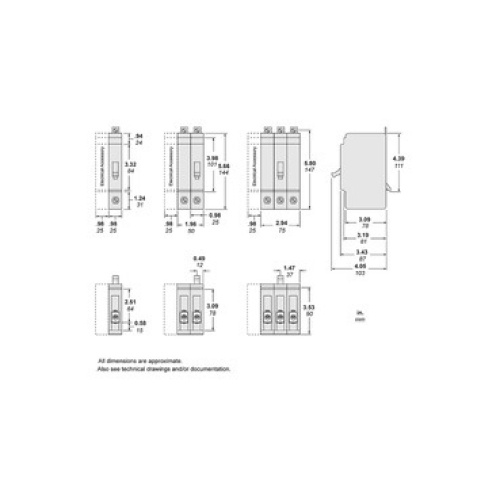

Schneider EDB16035 35 A Circuit-breaker EDB 14 kA 600Y/347 VAC 125 A Frame EDB-EGB-EJB 1 1 00931 - EDB CIRCUIT BREAKERS 34.52 lbf.in (3.9 N.m 0.00-0.01 in² (2.5-6 mm² AWG 14-AWG 10, 49.56 lbf.in (5.6 N.m 0.02-0.11 in² (10-70 mm² AWG 8-AWG 2/0 5.66 in (143.76 mm 4.05 in (102.87 mm
Condition: New
CALL FOR LEAD TIME$202.60
Sale Price
$168.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
E-Frame Breaker circuit breakers are reliable and robust lighting panelboard breakers designed specifically for Square D NF Panelboards, offering superior overload and short circuit protection through a thermal-magnetic trip unit and signal indicator, with mounting bolts to secure in place, providing 35A, 1 pole operation at 600Y/347 VAC, a max interrupt rating of 25 kA at 120 VAC, and hold currents of 630A and trip currents of 1800A.
Specifications
Breaker Amperage Rating
35 Amp
Breaker Number of Poles
Single Pole
Breaker Voltage Rating
600Y VAC
Breaker Voltage Rating
347 VAC
Component
Miniature Circuit Breaker
Manufacturer
Schneider Electric
Manufacturer
Square D
Features
Used in lighting panelboards
Superior overload and short circuit protection
From 15A to 125A ratings
